Preparing the SAP Environment

Topics:

Reference:

The Server requires the SAP RFC SDK to communicate with the SAP Application Server. The location of the RFC SDK depends on the platform specific search path.

Platform dependent search path for shared libraries (RFC SDK):

You will use SAP GUI to logon to SAP and prepare the environment.

A Developer Key is required for the SAP user ID of the administrator. (The system prompts for the Developer Key if it has not been entered previously.)

USER IDs are required for authorization, with variations in privilege assignments based on the nature of the users responsibilities. Basic privileges are assigned to users who only need to execute procedures (focexecs). Administrative privileges are assigned to users who need to perform a variety of administrative functions for the Adapter for SAP. For example, the Adapter for SAP generates ABAP/4 programs dynamically at run time. This is done using adapter components uploaded into the SAP system during the configuration of the adapter, a task that requires administrative privileges.

For related information, refer to the following lists of processing objects: List of Authorization Objects, Fields, and Required Values for USER and List of Authorization Objects for Background Processing.

Reference: List of Authorization Objects, Fields, and Required Values for USER

The following charts reflect any differences that apply for basic users and adapter administrators.

S_RFC: Authorization check for RFC access

Field

Value

ACTVT (Activity)

16 (Execute)

RFC_NAME (Name of RFC to be protected)

For administrators: AQRC, SDTX, SLST, SUTL, SYST, Z***

For basic users: SYST, Z***

RFC_TYPE (Type of RFC object to be protected)

FUGR (function group)

S_TCODE: Authorization check for Transaction Start

Field

Value

TCD (Transaction code)

For administrators: S001, SE09, SE11, SE11_OLD, SE13, SE37, SE38, SE80, SU53

For basic users: S001, SE37, SE38, SU53

S_ADMI_FCD: System Authorizations

Field

Value

S_ADMI_FCD (System administration functions)

For administrators: MEMO

S_C_FUNCT: C Calls in ABAP Programs

Field

Value

ACTVT (Activity)

For administrators: 16 (Execute)

CFUNCNAME (Name of a CALLable C routine)

For administrators: SYSTEM

PROGRAM (ABAP program name)

For administrators: SAPLSTRF, SAPLSTRI

S_DATASET: Authorization for File Access

Field

Value

ACTVT (Activity)

For administrators: 33, 34, A6

FILENAME (Physical file name)

For administrators: *

PROGRAM (ABAP program name)

For administrators: *

S_TABU_DIS: Table Maintenance (via standard tools such as SM30)

Field

Value

ACTVT (Activity)

For administrators: 03

DICBERCLS (Authorization group)

For administrators: SS, &NC&

S_DEVELOP: ABAP Workbench

Field

Value

ACTVT (Activity)

For administrators: 01, 02, 03, 07, 16, 40

DEVCLASS: Development class for transport system

For administrators: *

OBJNAME: Object name

For administrators: *

OBJTYPE: Object type

For administrators: DEVC, FUGR, PROG, TABL, TABT

P_GROUP: Authorization group with ABAP programs

For administrators: *

S_TRANSPORT: Transport Organizer

Field

Value

ACTVT (Activity)

For administrators: 01

TTYPE (Request type (Change and Transport System))

For administrators: DTRA, TASK

Reference: List of Authorization Objects for Background Processing

Field

Value

S_BTCH_ADM

N (unless you want the user to have administrative rights for Background jobs)

S_BTCH_JOB

RELE

Preparing the SAP Environment for Adapter Components

How to:

Reference:

The Adapter for SAP generates ABAP/4 programs dynamically at run time. This is done using adapter components uploaded into the SAP system during the configuration of the adapter. Prior to uploading the components, the SAP system has to be prepared.

To prepare the SAP environment for the adapter components, perform the following steps:

  1. Log on to SAP.
  2. Create the Development Class or Package.
  3. Create the Function Group.
  4. Activate the Function Group.
  5. Verify the Function Group.

Procedure: How to Log on to SAP

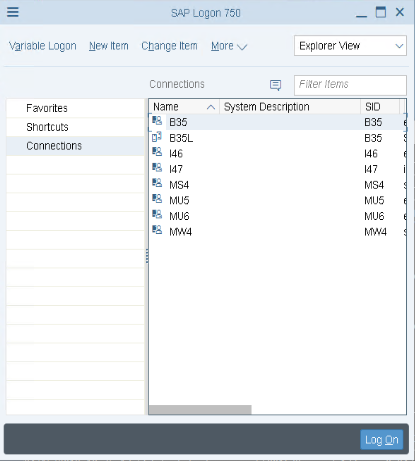

  1. Launch SAP logon. In a standard SAP GUI installation, the executable file resides in \Program Files\SAP\FrontEnd\SAPgui\saplogon.exe. The SAP Logon dialog box opens.

    If the list is empty, create a new entry.

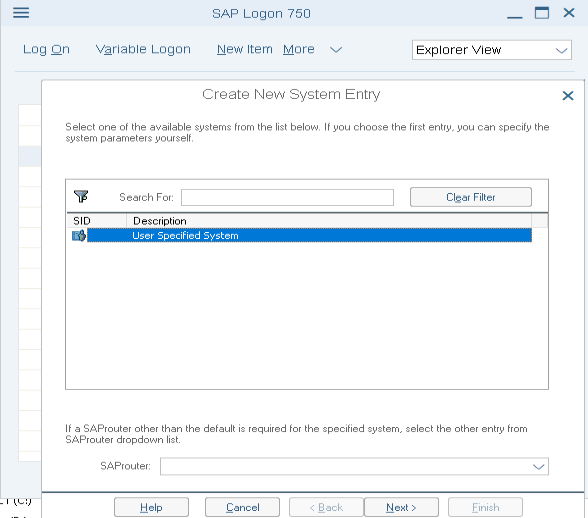

    1. Click New. The New Entry dialog box opens.
    2. Type the Description and Application Server, and select the System Number. In most cases, the SAP Router String is not needed, but check with your assigned SAP technical contact.

      In the Application Server field, type either the SAP application server network name or IP address.

      Click OK to create a new entry on the Logon list.

  2. Select the entry on the list and click Logon.

    A logon page prompting for a user ID and password appears. Logon to the system. Note that if the user ID is being used for the first time, the system will ask for the password to be changed.

Procedure: How to Create a Development Class or Package

Note: If you are using Release 4.7, create a Package instead of a Development Class.

  1. Execute transaction SE80 to start the Object Navigator.
  2. Type the Development Class or Package name for the installation of the Adapter for SAP (for example, ZIBI).

    Note: The Development Class or Package name can be a maximum of 14 characters and must follow SAP naming conventions for customer objects.

  3. Click Display .

    The system responds: Development Class or Package ZIBI does not exist.

  4. Click Yes to create the object.
  5. Type a short description for the Development Class or Package, for example, IBI-Created.
  6. Accept all displayed defaults and click Create.

    The system generates a unique Change and Transport System (CTS) request #.

  7. Save this CTS request # for deployment of the adapter to other SAP systems.
  8. Click Continue.

Procedure: How to Create a Function Group

  1. Execute transaction SE80 to start the Object Navigator.
  2. From the pull-down menu, select Function Group.
  3. Type the same Development Class or Package name for the installation of the Adapter for SAP that you specified in How to Create a Development Class or Package (for example, ZIBI).
  4. Click Display.

    The system responds: Function Group ZIBI does not exist.

  5. Click Yes to create the object.
  6. Enter a description for the Function Group.
  7. Accept all displayed defaults and click Save (unless otherwise directed by an SAP Basis Administrator).
  8. Under Create Object Directory Entry, type the same characters assigned to the Development Class and click Save.
  9. Under Prompt for transportable change request, type the CTS request # assigned during the creation of the Development Class or Package.
  10. Click Continue.

Procedure: How to Deactivate the Unicode Checks

This procedure applies only to SAP Release 4.7.

  1. Execute transaction SE80 to start the Object Navigator.
  2. From the pull-down menu, select Function Group.
  3. For Function Group value, type the name of the function group you created (for example, ZIBI).
  4. Click Display.

    The object window shows an open folder with the name of the function group and a closed folder named Includes.

  5. Right-click the function group name (for example, ZIBI) and select Change from the pop-up menu.

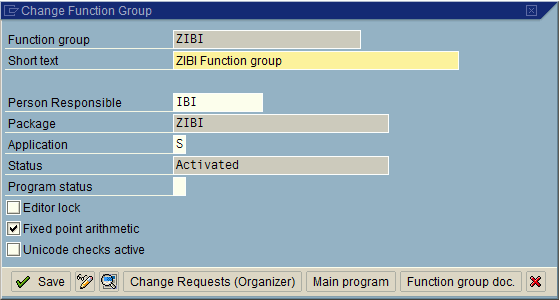

  6. Deselect the Unicode checks active check box and click Save.

Procedure: How to Activate a Function Group

  1. Execute transaction SE80 to start the Object Navigator.
  2. From the pull-down menu, select Function Group.
  3. For Function Group value, type the name of the function group you created (for example, ZIBI).
  4. Click Display.

    The object window shows an open folder with the name of the function group and a closed folder named Includes.

  5. Right-click the function group name (in this example, ZTST) and select Activate from the pop-up menu.

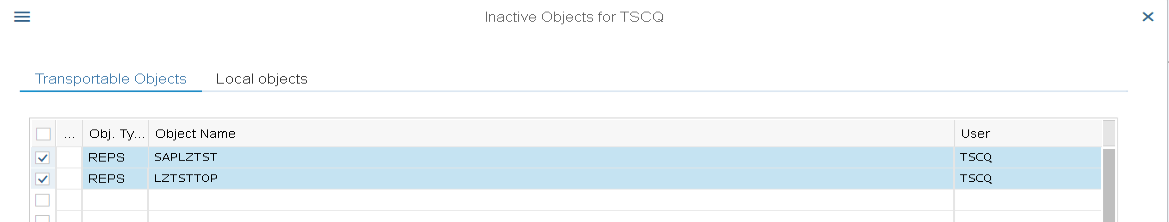

    A new window lists all inactive objects. Note that the object name now begins with SAPL.

    Make sure the object for the function group ZTST is selected.

  6. Click Continue.

Procedure: How to Verify a Function Group

  1. Execute transaction SE80 to start the Object Navigator.
  2. From the pull-down menu, select Function Group.
  3. For Function Group value, type the name of the function group you created (for example, ZIBI).
  4. Click Display.
  5. Right-click the ZTST folder and select Check - Extended Check.
  6. Select Perform Check.

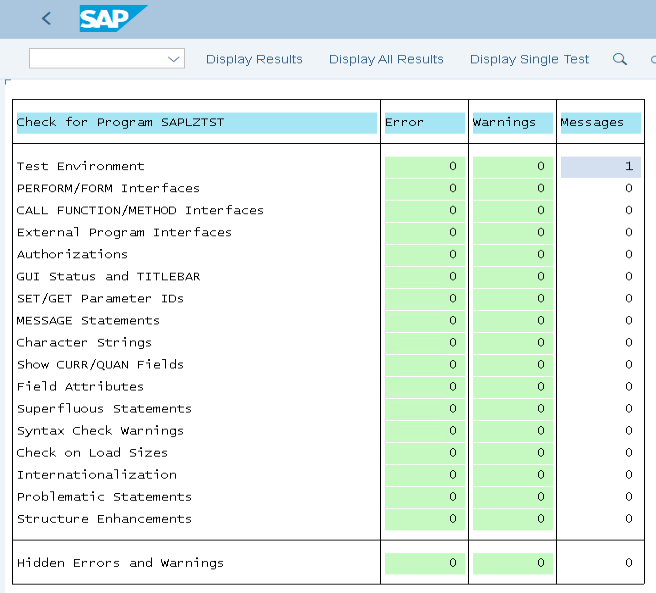

    You should get a report similar to the following:

    Note: If you encounter errors or warnings during this step, resolve them at the SAP layer before continuing with the installation of the Adapter for SAP.

  7. Double-click the error line for detailed information about the error.

The SAP environment is now prepared for the next step of function module upload from the Web Console.

Reference: Customizing the Transport/Promotion of the ZXXX* Temporary Objects

During the installation of the SAP adapter, a set of function modules, including two temporary objects like ZXXXBTCH and ZXXXREPTS, are uploaded and registered in the SAP repository. In preparation for the transport from the QA to DEV to PROD application servers, the ZXXXBTCH object must be assigned to the ZXXX development class. Otherwise, ZXXXBTCH will be assigned to the development class $TMP or remain unassigned, either of which can cause the transport to fail.

Reference: Transport Control

SAP provides a transport control program (tp) to handle release upgrades and transports among SAP systems. The transport control program:

  • Keeps track of transports.
  • Exports and imports objects in the correct order.
  • Ensures that imports into a target system are performed in the same order as the exports from the source system(s). (Processing of imports out of order can result in severe inconsistencies in the target system, which are difficult to diagnose.)
  • Enables you to perform exports and imports separately.

During an export, the objects to be transported are extracted from the database of the source system and stored in files of the operating system.

During the import, the objects are added to the database of the target system (according to the transport function recorded in the task).

Note: For detailed technical background, refer to http://help.sap.com.
