Configuring the Adapter for Hadoop/Hive

Topics:

How to:

Reference:

Configuring the adapter consists of specifying connection and authentication information for each of the connections you want to establish. The adapter supports Hiveserver2, which is available in Hive 0.11.0 and later. It is strongly recommended for improved throughput, functionality, and security.

Procedure: How to Configure the Hadoop/Hive Adapter

You can configure the adapter from either the Web Console or the Data Management Console.

  1. From the Web Console sidebar, click Connect to Data.

    or

    From the Data Management Console, expand the Adapters folder.

    In the DMC, the Adapters folder opens. In the Web Console, the Adapters page opens showing your configured adapters.

  2. In the Web Console, click the New Datasource button on the menu bar and find the adapter on the page or, in the DMC, expand the Available folder if it is not already expanded.
    On the Web Console, you can select a category of adapter from the drop-down list or use the search option (magnifying glass) to search for specific characters.
  3. In the DMC, expand the appropriate group folder and the specific adapter folder. The group folder is described in the connection attributes reference.
  4. Right-click Apache Hive and click Configure.
  5. In the URL box, type the URL used to connect to your Hive server. For more information, see Hive/Impala Adapter Configuration Settings.
  6. In the Driver Name box, type the driver name from the following table:

    Driver

    JDBC Driver Name

    Apache Hive


    org.apache.hive.jdbc.HiveDriver

    Cloudera/Simba


    com.cloudera.hive.jdbc41.HS2Driver
  7. Select the security type. If you are using Explicit, type your user ID and password.

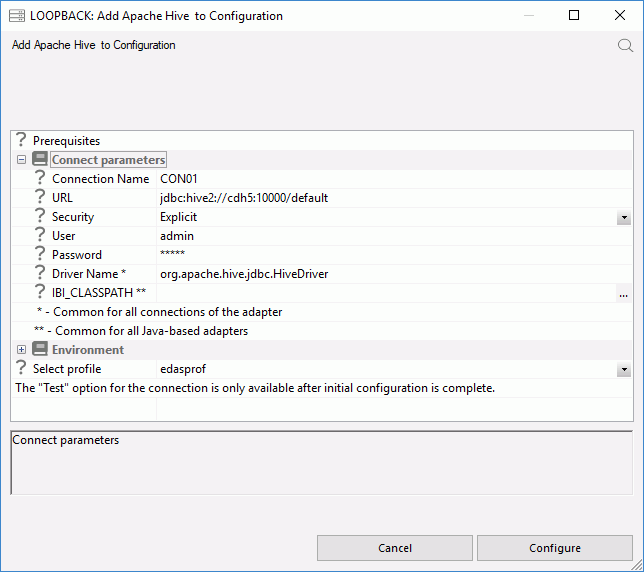

    The following image shows an example of the configuration settings used:


    Apache Hive configuration
  8. Select edasprof from the Select profile drop-down menu to add this connection for all users, or select a user profile.
  9. Click Test. You should see a list of data sources on your server.
  10. Click Configure.

Reference: Hive Adapter Configuration Settings

The Adapter for Hadoop/Hive is under the SQL group folder.

Connection name

Logical name used to identify this particular set of connection attributes. The default is CON01.

URL

Is the URL to the location of the data source.

The URL used depends on what type of server you are connecting to. See the table below for examples. For more details, see the JDBC section in the online documentation for Apache Hive, or the Cloudera JDBC Driver for Apache Hive documentation, which is included with the JDBC driver download.

Server

URL

Hiveserver2


jdbc:hive2://server:10000/default

Kerberos Hiveserver2 (static)


jdbc:hive2://server:10000/default;
principal=hive/server@REALM.COM

Kerberos Hiveserver2


jdbc:hive2://server:10000/default;principal=hive/
server@REALM.COM;
auth=kerberos;kerberosAuthType=fromSubject

Cloudera/Simba (no security)


jdbc:hive2://server:10000;AuthMech=3;transportMode=binary

Kerberos Cloudera/Simba


jdbc:hive2://server:10000;AuthMech=1;KrbRealm=REALM.COM;
KrbHostFQDN=server.example.com;KrbServiceName=hive

where:

server

Is the DNS name or IP address of the system where the Hive server is running. If it is on the same system, localhost can be used.

default

Is the name of the default database to connect to.

10000

Is the default port number HiveServer2 is listening on if not specified when the Hive server is started.

REALM.COM

For a Kerberos enabled Hive server, this Is the name of your realm.

Driver Name

Is the name of the JDBC driver, for example, org.apache.hive.jdbc.HiveDriver or com.cloudera.hive.jdbc41.HS2Driver.

IBI_CLASSPATH

Defines the additional Java Class directories or full-path jar names which will be available for Java Services. Value may be set by editing the communications file or in the Web Console. Using the Web Console, you can enter one reference per line in the input field. When the file is saved, the entries are converted to a single string using colon (:) delimiters for all platforms. OpenVMS platforms must use UNIX-style conventions for values (for example, /mydisk/myhome/myclasses.jar, rather than mydisk:[myhome]myclasses.jar) when setting values. When editing the file manually, you must maintain the colon delimiter.

Security

There are three methods by which a user can be authenticated when connecting to a database server:

  • Explicit. The user ID and password are explicitly specified for each connection and passed to the database, at connection time, for authentication.
  • Password Passthru. The user ID and password received from the client application are passed to the database, at connection time, for authentication.
  • Trusted. The user ID is passed from a trusted source.
User

Primary authorization ID by which you are known to the data source.

Password

Password associated with the primary authorization ID.

Select profile

Select a profile from the drop-down menu to indicate the level of profile in which to store the CONNECTION_ATTRIBUTES command. The global profile, edasprof.prf, is the default.

If you wish to create a new profile, either a user profile (user.prf) or a group profile if available on your platform (using the appropriate naming convention). Choose New Profile from the drop-down menu and enter a name in the Profile Name field (the extension is added automatically).

Store the connection attributes in the server profile (edasprof).

Kerberos

Topics:

Connections to a Hive server with Kerberos enabled can be run in several ways:

  • Static. The same Kerberos credential is used for all connections. You must obtain a Kerberos ticket before starting the server. On expiration of the Kerberos ticket, a new one must be obtained and the server must be restarted. Use Trusted as the security type.

    This mode is useful for testing, but is not recommended for production deployment.

  • User. Each user connecting to the server connects to Hive using their own credentials from the Hive Adapter connection in the user profile. The server obtains a Kerberos ticket for the user. Use Explicit as the security type.
  • Database. Users connect to the server using the Kerberos credentials, which are authenticated against a Hive server with Kerberos enabled. The server obtains a Kerberos ticket for the user. Use Password Passthru as the security type.
  • Single Sign-on. Users log into Windows with their Kerberos or Active Directory credentials and Windows obtains a Kerberos ticket. That ticket is used when the user connects to the server and is passed to Hive. Use Trusted as the security type.

To setup connections to a Kerberos enabled Hive instance:

  • The Reporting Server has to be secured. The server can be configured with security providers PTH, LDAP, DBMS, OPSYS, or Custom, as well as multiple security providers environment,

Kerberos Static Ticket Requirements

In this configuration, all connections to Hive instance will be done with the same Kerberos user ID derived from the Kerberos ticket that is created before the server starts.

  1. Create Kerberos ticket using:
    kinit kerbid01

    where:

    kerbid01

    Is a Kerberos ID.

  2. Verify Kerberos ticket using klist. The following message should be returned:
  3. Before configuring the Hive Adapter connection to a Kerberos-enabled instance, the connection should be tested. Log in to the system running Hive and use Beeline, the native tool, to test it.
  4. Start the server in the same Linux session where the Kerberos ticket was created. Log in to the Web Console and click the Adapters tab.
  5. Right-click Apache Hive. Use the following parameters to configure the adapter:
    URL
    Enter the same URL that you use to connect to the Hive Instance using Beeline. For example:
    jdbc:hive2://server:10000/default;principal=hive/server@REALM.COM
    Security

    Set to Trusted.

  6. In the Select profile drop-down menu, select the edasprof server profile.
  7. Click Configure.
  8. Next, configure Java services. Click the Workspace tab and expand the Java Services folder.
  9. Right-click DEFAULT and select Properties.
  10. Expand the JVM Settings section. In the JVM options box, add the following:
    -Djavax.security.auth.useSubjectCredsOnly=false
  11. Restart Java services.

Once these steps are completed, the adapter can be used to access a Kerberos-enabled Hive instance.

Kerberos User Ticket Requirements

In this configuration, each connected user has a Hive Adapter connection with Kerberos credentials in the user profile.

  1. Enable multi-user connection processing for Kerberos by adding the following line to your profile (edasprof.prf):
    ENGINE SQLHIV SET ENABLE_KERBEROS ON
  2. Kerberos looks for the default realm in /etc/krb5.conf, or on Windows krb5.ini. Make sure that this file contains the information for your Kerberos server, and not the sample file.

    If you are running the server on a Windows system, under the Local System account, specify your realm name and Kerberos Key Distribution Center. To do so:

    1. Expand the Workspace folder.
    2. Expand the Java Services folder, right-click DEFAULT, and click Properties.
    3. Expand the JVM settings section and add the following in the JVM Options box:
      -Djava.security.krb5.realm=REALM.COM
-Djava.security.krb5.kdc=kdc.realm.com

      where:

      REALM.COM

      Is the realm name of your organization.

      kdc.realm.com

      Is the Key Distribution Center of your organization.

  3. Configure the Hive Adapter Connection in the user profile using the following values:
    URL

    Is the URL to the location of the data source.

    Server

    URL

    Kerberos Hiveserver2 (User)


    jdbc:hive2://server:10000/default;principal=hive/server@REALM.COM;
auth=kerberos;kerberosAuthType=fromSubject

    Kerberos Cloudera/Simba


    jdbc:hive2://server:10000;AuthMech=1;KrbRealm=REALM.COM;
KrbHostFQDN=server.example.com;KrbServiceName=hive
    Security

    Set to Explicit.

    User and Password

    Enter your Kerberos user ID and password. The server will use those credentials to create a Kerberos ticket and connect to a Kerberos-enabled Hive instance.

    Note: The user ID that you use to connect to the server does not have to be the same as the Kerberos ID you use to connect to a Kerberos-enabled Hive instance.

    Select Profile

    Select your profile or enter a new profile name consisting of the security provider, an underscore and the user ID. For example, ldap01_pgmxxx.

  4. Click Configure.

Kerberos Password Passthru Requirements

This procedure will show you how to create a connection to a Kerberos enabled Hadoop Cluster using the Adapter for Apache Hive with security Password Passthru.

  1. Configure the connection to Hive using the following values:
    URL

    Is the URL to the location of the data source.

    jdbc:hive2://server1:10000/default;principal=hive/server1@REALM.COM;
auth=kerberos;kerberosAuthType=fromSubject

    where:

    server1

    Is the name of a node on your Hadoop cluster where a Hive2 server is running.

    Security

    Set to Password Passthru.

    Select Profile

    Select the server profile, edasprof.

    Driver Name

    Is the name of the JDBC driver, for example, org.apache.hive.jdbc.HiveDriver.

    IBI_CLASSPATH

    Defines the additional Java Class directories or full-path jar names which will be available for Java Services (if not included in your system CLASSPATH).

    /path/to/hive-jdbc-<version>standalone.jar
  2. Click Configure.

    You also need to configure Hive as a DBMS Security Provider.

  3. From the Web Console, click Access Control.
  4. Under Security Providers, right-click DBMS and click New.

    The DBMS Security Provider Configuration page opens.

  5. Enter the following values:
    DBMS Provider

    Enter the provider, as desired. For example, hive.

    Security DBMS

    Select SQLHIV - Apache Hive.

    security_connection

    The connection name you specified, for example, server.

  6. Click Save.

    The DBMS Security Provider Configuration page opens.

  7. Select the line DBMS - hive , where hive is the name you used. .
  8. From the Status drop-down menu, select Primary or Secondary, as desired.

Kerberos Single Sign-On Requirements

Topics:

The following sections will show you how to configure a DataMigrator or WebFOCUS Reporting Server for access to Hadoop through Hive with Kerberos enabled Hadoop Cluster using the Adapter for Apache Hive with single sign-on from the desktop to the browser using Hive.

  1. Configure the connection to Hive using the following values:
    URL

    Is the URL to the location of the data source.

    jdbc:hive2://server1:10000/default;principal=hive/server1@IBI.COM;
auth=kerberos;kerberosAuthType=fromSubject

    where:

    server1

    Is the name of a node on your Hadoop cluster where a Hive2 server is running.

    Security

    Set to Trusted.

    Select Profile

    Select the server profile, edasprof.

    Driver Name

    Is the name of the JDBC driver, for example, org.apache.hive.jdbc.HiveDriver.

    IBI_CLASSPATH

    Defines the additional Java Class directories or full-path jar names which will be available for Java Services (if not included in your system CLASSPATH).

    /path/to/hive-jdbc-<version>standalone.jar
  2. You also need to configure the server for inbound Kerberos.
  3. Click Configure.

Configuring the DataMigrator or Reporting Server for Inbound Kerberos

A server started with security provider OPSYS can be configured for Kerberos connections.

To implement the single sign on Kerberos security:

  1. On the Access Control page, right-click the OPSYS provider, and select Properties from the context menu.

    The OPSYS Security Configuration page opens.

  2. In the krb5_srv_principal * field, enter your server principal used for Kerberos security.
  3. Click Save.

    The edaserve.cfg file is updated with this attribute.

  4. On the Workspace page, expand the Special Services and Listeners folder, right-click TCP/HTTP, and select Properties of TCP.
  5. Check SECURITY=KERBEROS.
  6. Click Save and Restart Listener.

    The odin.cfg file is updated with this attribute.

When the server is started, a user can connect to the Web Console from Internet Explorer without a prompt for user ID and password. The Login Info shows connection type Kerberos. The connection is done using the Kerberos ticket from the browser. The connected user ID is derived from this ticket.

Connection to the server requires that there is a local OPSYS user ID with the same name as the Kerberos user ID on the operating system running the server. This user ID is used for tscom3 process impersonation.

If a user signs off from the Kerberos connection, the user can make explicit connections with the local Unix user ID and password. Connection with another Kerberos user ID as an explicit connection will not work.

Configuring Java Authentication and Authorization Services

Once you configure a DataMigrator or WebFOCUS Reporting Server for access to Hadoop through Hive, you must also configure Java to use the HTTP service principal.

  1. Using the name of the HTTP service principal for your server that you specified when configuring the DataMigrator or WebFOCUS Reporting Server for inbound Kerberos, store the credentials for this principal in a keytab. Enter the following line:
    $ klist -k /etc/krb5.keytab

    Confirm the credentials are stored correctly, as follows:

    Keytab name: FILE:/etc/krb5.keytab
KVNO Principal
---- --------------------------------------
    1 HTTP/server.example.com@REALM.COM
  2. Create a jaas.conf file in the location of your choice, using your preferred text editor, for example, /ibi/srv82/wfs/etc/jaas.conf. The example code also shows sample values for the keyTab and principal parameters.
    jconnection {
 com.sun.security.auth.module.Krb5LoginModule required
 debug=false doNotPrompt=true useKeyTab=true
 keyTab="/etc/krb5.keytab"
 storeKey=true isInitiator=false
 principal="HTTP/server.example.com@REALM.COM";;
};
com.sun.security.jgss.accept {
 com.sun.security.auth.module.Krb5LoginModule required debug=false
 doNotPrompt=true useKeyTab=true
 keyTab="/etc/krb5.keytab"
 storeKey=true isInitiator=false
 principal="HTTP/server.example.com@REALM.COM";;
};
  3. From the Web Console, click the Workspace folder.
  4. Expand the Java Services folder, right-click DEFAULT, and click Properties. The Java Services Configuration window opens.
  5. Expand the JVM section. In the JVM_Options box, enter the location where you saved the jaas.conf file. For example:
    -Djava.security.auth.login.config=/ibi/srv82/wfs/etc/jaas.conf
  6. Click Save and Restart Java Services.

Troubleshooting

Here are some of the errors you may see when attempting to connect to a Hadoop cluster. These error messages will be prefixed by FOC1500.

Java listener may be down

ERROR: ncjInit failed.  Java listener may be down - see edaprint.log.

This is a Java specific issue. Confirm that your Java version meets your system requirements for bit size (32 bit vs 64 bit), and that the value for JAVA_HOME is pointing to the correct Java version.

No suitable driver found for jdbc: ...

(-1) [00000] JDBFOC>> makeConnection(): conn is NULLjava.sql.
SQLException: No suitable driver found for jdbc:hive1://server:10000/default

The name of the JDBC driver in the URL is incorrect. For example, in the above URL, the driver is hive1.

ClassNotFoundException

(-1) [00000] JDBFOC>> connectx(): java.lang.ClassNotFoundException:
org.apache.hive.jdbc.HiveDriver

One of the jar files that comprises the Hive JDBC driver is not found in the CLASSPATH, or the driver name is incorrect. In the above example, the driver name is org.apache.hive.jdbc.HiveDriver.

Required field 'client_protocol' is unset!

(-1) [00000] JDBFOC>> makeConnection(): conn is NULLjava.sql.
SQLException: Could not establish connection to
jdbc:hive2://server:10000/default;principal=hive/server@REALM.
COM;auth=kerberos;kerberosAuthType=fromSubject: Required field
'client_protocol' is unset! Struct:TOpenSessionReq(client_protocol:null,
configuration:{use:database=default})

This is due to a Java version mismatch. The version of Java on the client is newer than the one on the server. To resolve this error, update Java on the system where you are running our server.

Could not open client transport with JDBC Uri:

-1) [00000] JDBFOC>> makeConnection(): conn is NULLjava.sql.
SQLException: Could not open client transport with JDBC Uri:
jdbc:hive2://server:10000/default;principal=hive/server@REALM.
COM;auth=kerberos;kerberosAuthType=fromSubject: ...

This is a generic error, and could be due to any kind of error in the URL or configuration. For more details, read the rest of the message.

Unsupported mechanism type PLAIN

 (-1) [00000] JDBFOC>> makeConnection():  conn is NULLjava.sql.
SQLException: Could not open client transport with JDBC Uri:
jdbc:hive2://server:10000/default: Peer indicated failure: Unsupported
mechanism type PLAIN

The cluster has Kerberos enabled and a Kerberos principal to authenticate against is not specified. To resolve this error, add the following to the end of the URL using your cluster and REALM name:

;principal=hive/server@REALM.COM

UnknownHostException: server

(-1) [00000] JDBFOC>> makeConnection(): conn is NULLjava.sql.
SQLException: Could not open client transport with JDBC Uri:
jdbc:hive2://server:10000/default;principal=hive/server@REALM.
COM;auth=kerberos;kerberosAuthType=fromSubject: java.net.
UnknownHostException: name

The server you specified could not be reached. Either the system is down or the name is invalid.

Could not open client transport with JDBC Uri:... Connection refused

(-1) [00000] JDBFOC>> makeConnection(): conn is NULLjava.sql.
SQLException: Could not open client transport with JDBC Uri:
jdbc:hive2://server:10000/default;principal=hive/server@REALM.
COM;auth=kerberos;kerberosAuthType=fromSubject: java.net.
ConnectException: Connection refused: connect

The hostname could be reached, but there is no Hive Thrift server running at the hostname and port number you specified

Client not found in Kerberos database

(-1) [00000] JDBFOC>> makeConnection(): javax.security.auth.login.
LoginException: Client not found in Kerberos database (6)

The user ID (User Principal Name) specified is not a valid Kerberos user ID.

Pre-authentication information was invalid

-1) [00000] JDBFOC>> makeConnection():
javax.security.auth.login.LoginException: Pre-authentication
information was invalid (24)

The user ID (User Principal Name) specified was found, but the password is missing or invalid.

GSS initiate failed

(-1) [00000] JDBFOC>> makeConnection(): conn is NULLjava.sql.
SQLException: Could not open client transport with JDBC Uri:
jdbc:hive2://server:10000/default;principal=hive/server@domain.
COM; GSS initiate failed
Caused by: org.apache.thrift.transport.TTransportException:

Kerberos was unable to authenticate against the specified Service Principal Name.

This occurs if you are using static credentials that were obtained by kinit before the server starts, and did not specify the option to allow that. To resolve this issue, from the Web Console:

  1. Click Workspace in the side bar.
  2. Expand the Java Services folder.
  3. Right-click DEFAULT.
  4. Click Properties.
  5. Expand the JVM Settings section.
  6. Enter the following in the JVM_OPTIONS box:
    -Djava.security.auth.useSubjectCredsOnly=false

This also occurs if you are using subject credentials with explicit or password pass through security, but did not specify that you are doing so. Add the following to the end of the URL:

;auth=kerberos;kerberosAuthType=fromSubject

Could not create secure connection to ... Failed to open client transport

(0) [ 08S0] Could not create secure connection to
jdbc:hive2://server:10000/default;principal=hive/server@REALM.
COM;auth=kerberos;kerberosAuthType=fromSubject: Failed to open client
transportjava.sql.SQLException: Could not create secure connection to
jdbc:hive2://server:10000/default;principal=hive/server@REALM.
COM;auth=kerberos;kerberosAuthType=fromSubject: Failed to open client
transport

The client was not able to use Kerberos to connect. You did not enable Kerberos and are using subject credentials. To resolve this issue, add the following to the server profile:

ENGINE SQLHIV SET ENABLE_KERBEROS ON

Cannot locate default realm

(-1) [00000] JDBFOC>> makeConnection(): javax.security.auth.login.
 LoginException: KrbException: Cannot locate default realm

Kerberos looks for the default realm in /etc/krb5.conf, or on Windows krb5.ini, and it either cannot find or read the file or the default realm is not specified.

For a server running as a service on a Windows machine, you must explicitly specify the realm for the organization and the KDC. Review the file to make sure that the default realm is specified and correct. To resolve this issue, from the Web Console:

  1. Click Workspace in the side bar.
  2. Expand the Java Services folder.
  3. Right-click DEFAULT.
  4. Click Properties.
  5. Expand the JVM Settings section.
  6. Using the name of your realm and Key Distribution Center (KDC), enter the following in the JVM_OPTIONS box:
    -Djava.security.krb5.realm=REALM.COM
-Djava.security.krb5.kdc=kdc.domain.com

Click Save and Restart Java Services.

WebFOCUS

Feedback
