Configuring the Adapter for Cloudera Impala

Topics:

How to:

Reference:

Configuring the adapter consists of specifying connection and authentication information for each of the connections you want to establish.

Procedure: How to Configure the Cloudera Impala Adapter

You can configure the adapter from either the Web Console or the Data Management Console.

  1. From the Web Console sidebar, click Connect to Data.

    or

    From the Data Management Console, expand the Adapters folder.

    In the DMC, the Adapters folder opens. In the Web Console, the Adapters page opens with two lists, Configured Adapters and Available Adapters.

  2. Find the adapter on the Available list in the Web Console or expand the Available folder in the DMC, if it is not already expanded.
    On the Web Console, you can select a category of adapter from the drop-down list or use the search option (magnifying glass) to search for specific characters.
  3. Right-click Cloudera Impala and click Configure.
  4. In the URL box, type the URL used to connect to your Hive or Impala server. For more information, see Cloudera Impala Adapter Configuration Settings.
  5. In the Driver Name box, type the JDBC driver that you are using from the following table:

    Adapter

    JDBC Driver Name

    Apache Hive


    org.apache.hive.jdbc.HiveDriver

    Cloudera Impala


    com.cloudera.impala.jdbc41.Driver
  6. Select the security type. If you are using Explicit, type your user ID and password.

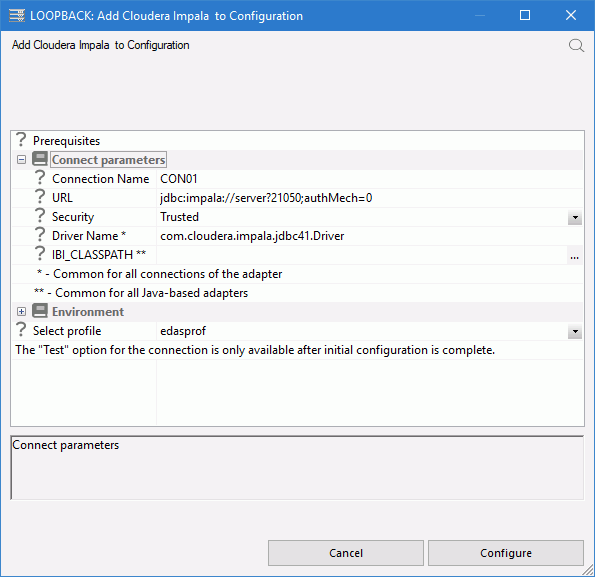

    The following image shows an example of the configuration settings used:


    Add Cloudera Impala adapter
  7. Select edasprof from the drop-down menu to add this connection for all users, or select a user profile.
  8. Click Test. You should see a list of data sources on your server.
  9. Click Configure.

Reference: Cloudera Impala Adapter Configuration Settings

The Adapter for Hadoop/Hive/Impala is under the SQL group folder.x

Connection name

Logical name used to identify this particular set of connection attributes. The default is CON01.

URL

Is the URL to the location of the data source.

The URL used depends on which JDBC driver and which server you are connecting to.

JDBC Driver

Security

URL

Hive

None

jdbc:hive2://server:21050/;auth=noSasl

Hive

Kerberos (static)

jdbc:hive2://server:21050/default;
principal=impala/server@REALM.COM

Hive

Kerberos (user)

jdbc:hive2://server:21050/default;principal=impala/server@REALM.COM;
auth=kerberos;kerberosAuthType=fromSubject

Impala

None

jdbc:impala://server:21050;authMech=0

Impala

User name and password

jdbc:impala://server:21050;
authMech=3,UID=user,PWD=pass

Impala

Kerberos

jdbc:impala://server:21050;
AuthMech=1;KrbRealm=REALM.COM;
KrbHostFQDN=server.example.com;
KrbServiceName=impala

where:

server

Is the DNS name or IP address of the system where the Hive or Impala server is running. If it is on the same system, localhost can be used.

default

Is the name of the default database to connect to.

21050

Is the default port number for an Impala server.

auth=noSasl

Indicates that there is no security on the Impala server.

REALM.COM

For a Kerberos enabled Impala server, this Is the name of your realm.

For further descriptions of the Impala JDBC driver options, see the Cloudera JDBC Driver for Impala manual.

Driver Name

Is the name of the JDBC driver, for example, org.apache.hive.jdbc.HiveDriver or com.cloudera.impala.jdbc41.Driver.

IBI_CLASSPATH

Defines the additional Java Class directories or full-path jar names which will be available for Java Services. Value may be set by editing the communications file or in the Web Console. Using the Web Console, you can enter one reference per line in the input field. When the file is saved, the entries are converted to a single string using colon (:) delimiters for all platforms. OpenVMS platforms must use UNIX-style conventions for values (for example, /mydisk/myhome/myclasses.jar, rather than mydisk:[myhome]myclasses.jar) when setting values. When editing the file manually, you must maintain the colon delimiter.

Security

There are three methods by which a user can be authenticated when connecting to a database server:

  • Explicit. The user ID and password are explicitly specified for each connection and passed to the database, at connection time, for authentication.
  • Password Passthru. The user ID and password received from the client application are passed to the database at connection time for authentication.
  • Trusted. The adapter connects to Impala as an operating system login using the credentials of the operating system user impersonated by the server data access agent.
User

Primary authorization ID by which you are known to the data source.

Password

Password associated with the primary authorization ID.

Select profile

Select a profile from the drop-down menu to indicate the level of profile in which to store the CONNECTION_ATTRIBUTES command. The global profile, edasprof.prf, is the default.

If you wish to create a new profile, either a user profile (user.prf) or a group profile if available on your platform (using the appropriate naming convention), choose New Profile from the drop-down menu and type a name in the Profile Name field (the extension is added automatically).

Kerberos

Topics:

Connections to an Impala server with Kerberos enabled can be run in one of two ways:

  • Static credentials. The same Kerberos credential is used for all connections. You must obtain a Kerberos ticket before starting the server.
  • User credentials. Each user connecting to the server connects to Impala using credentials from the Impala Adapter connection in the server or user profile.

To set up connections to a Kerberos enabled Impala server:

  1. The Reporting Server has to be secured. The server can be configured with security providers PTH, LDAP, DBMS, OPSYS, or Custom, as well as multiple security providers environment,
  2. In addition to the jar files listed above, the following jar must be added to the CLASSPATH or IBI_CLASSPATH for the server:
    /hadoop_home/client/hadoop-auth.jar

Kerberos Static Requirements

In this configuration, all connections to the Impala server will be done with the same Kerberos user ID derived from the Kerberos ticket that is created before the server starts.

  1. Create Kerberos ticket using:
    kinit kerbid01

    where:

    kerbid01

    Is a Kerberos ID.

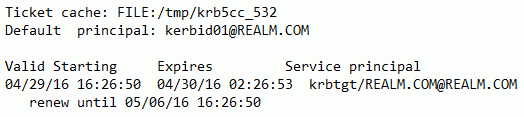

  2. Verify Kerberos ticket using klist. A message similar to the following should be returned:
  3. Before configuring the Impala Adapter connection to a Kerberos enabled instance, the connection should be tested. Log in to the system running Hive and use Beeline, the native tool, to test it.
  4. Start the server in the same Linux session where the Kerberos ticket was created. Log in to the Web Console and click the Adapters tab.
  5. Right-click Cloudera Impala and click Configure. Use the following parameters to configure the adapter:
    URL
    Enter the URL. For the Apache Hive adapter, use:
    jdbc:hive2://server:21050/default;principal=hive/server@REALM.COM
    Security

    Set to Trusted.

  6. In the Select profile drop-down menu, select the edasprof server profile.
  7. Click Configure.
  8. Next, configure Java services. Click the Workspace tab and expand the Java Services folder.
  9. Right-click DEFAULT and click Properties.
  10. Expand the JVM Settings section. In the JVM options box, add the following:
    -Djavax.security.auth.useSubjectCredsOnly=false
  11. Restart Java services.

Once these steps are completed, the adapter can be used to access a Kerberos-enabled Hive instance.

Kerberos User Credentials Requirements

In this configuration, the connection from the server profile is used or each connected user has an Impala Adapter connection with Kerberos credentials in the user profile.

  1. Enable multi-user connection processing for Kerberos by adding the following line to your profile (edasprof.prf):
    ENGINE SQLIMP SET ENABLE_KERBEROS ON
  2. Configure the Impala Adapter Connection in the user profile using the following values:
    URL

    For the adapter for Apache Hive:

    jdbc:hive2://server:21050/default;principal=impala/server@REALM.COM;
auth=kerberos;kerberosAuthType=fromSubject

    For the Cloudera Impala adapter:

    jdbc:impala://server:21050;AuthMech=1;KrbRealm=REALM.COM;
KrbHostFQDN=server.realm.com;KrbServiceName=impala
    Security

    Set to Explicit

    User and Password

    Enter your Kerberos user ID and password. The server will use those credentials to create a Kerberos ticket and connect to a Kerberos-enabled Hive instance.

    Note: The user ID that you use to connect to the server does not have to be the same as the Kerberos ID you use to connect to a Kerberos enabled Hadoop cluster.

    Select Profile

    Select your profile or enter a new profile name consisting of the security provider, an underscore and the user ID. For example, ldap01_pgmxxx.

  3. Click Configure.

Troubleshooting

If the server is unable to configure the connection, an error message is displayed. An example of the first line in the error message is shown below, where nnnn is the message number returned.

(FOC1400) SQLCODE IS -1 (HEX: FFFFFFFF) XOPEN: nnnn

Some common errors messages are:

[00000] JDBFOC>> connectx(): java.lang.UnsupportedClassVersionErr : or: org/apache/hive/jdbc/HiveDriver : Unsupported major.minor version 51.0

The adapter requires Java 1.7 or later and your JAVA_HOME points to Java 1.6.

(FOC1500) ERROR: ncjInit failed. failed to connect to java server: JSS
(FOC1500) . JSCOM3 listener may be down - see edaprint.log for details

The server could not find Java. To see where it was looking, review the edaprint.log and set JAVA_HOME to the actual location. Finally, stop and restart your server.

(FOC1260)  (-1) [00000] JDBFOC>> connectx():  java.lang.ClassNotFoundException:
   org.apache.hive.jdbc.HiveDriver
(FOC1260) Check for correct JDBC driver name and environment variables.
(FOC1260) JDBC driver name is org.apache.hive.jdbc.HiveDriver
(FOC1263) THE CURRENT ENVIRONMENT VARIABLES FOR SUFFIX SQLIMP ARE :
(FOC1260) IBI_CLASSPATH : ...
 (FOC1260) CLASSPATH : C:\ibi\srv77\home\etc\flex\lib\xercesImpl.jar

The JDBC driver name specified cannot be found in the jar files specified in IBI_CLASSPATH or CLASSPATH. The names of the jar files are either not specified, or if specified, do not exist in that location.

[08S0] Could not establish connection to jdbc:hive2://hostname:21050/auth=noSasl:
java.net.UnknownHostException: hostname

The server hostname could not be reached on the network. Check that the name is spelled correctly and that the system is running. Check that you can ping the server.

[08S01] Could not establish connection to server:21050/default:
: java.net.ConnectException: Connection refused

The Impala server is not listening on the specified port. Start the server if it is not running, and check that the port number is correct.

 (-1) [00000] JDBFOC>> makeConnection():
 javax.security.auth.login.LoginException: Pre-authentication
 information was invalid (24)

The Kerberos user ID and password combination is not valid.
