Synonym Editor Layout

Reference:

The Synonym Editor occupies the DMC workspace and displays the Field View, Segment View, Modeling View, Text View, and Access File Text View tabs.

Reference: Synonym Editor - Field View Tab

The Field View tab shows a hierarchy of segments and columns on the left, with the attributes and values of the selected item on the right.

Note: The attributes available depend on the type of synonym.

The image below is an example of an SQL data source with a key column selected.

Field View Tab

Note: Information about the attribute that has focus is displayed at the bottom of the attribute list. In this case, an explanation of the FIELDNAME attribute appears.

The following objects may appear on the Field View tab.

Object

Function

Description

Synonym

General icon used to indicate synonyms, visible on top of the Field View tab. It provides information about the file name used and the application it resides in.

Segment

Indicates a segment in a synonym. The root or parent segment appears first in the tree.

Unique Segment (FOCUS/FDS and XFOCUS only)

Indicates a unique segment in a FOCUS/FDS or XFOCUS synonym.

Virtual Segment (Cross-Referenced)

Indicates a virtual or cross-referenced segment.

Note: This type of segment is applicable for FOCUS data sources.

Key Column

Indicates a key column.

Column button

Column

Indicates a general column.

Virtual Column (DEFINE)

Indicates a virtual or defined column.

Index Column

Index Column

For FOCUS files, indicates the field index for quick retrieval of values for this field.

Filter

Filter

Indicates a filter in the synonym.

Compute field

Compute

Indicates a computed field.

Internal field

Indicates a column that does not appear in sample data or in the list of available columns.

Needs Value field

Indicates a column that requires a value to access the data.

Reference: Synonym Editor - Segment View Tab

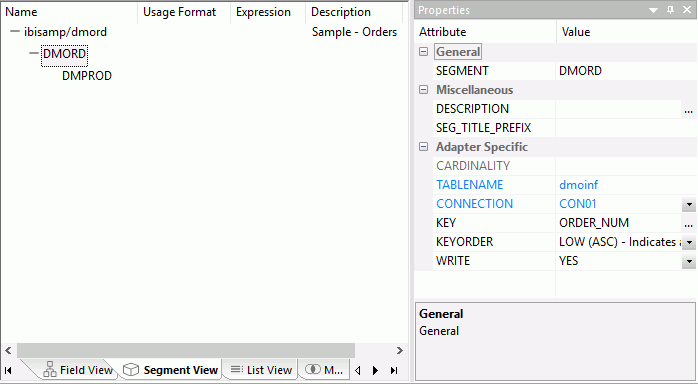

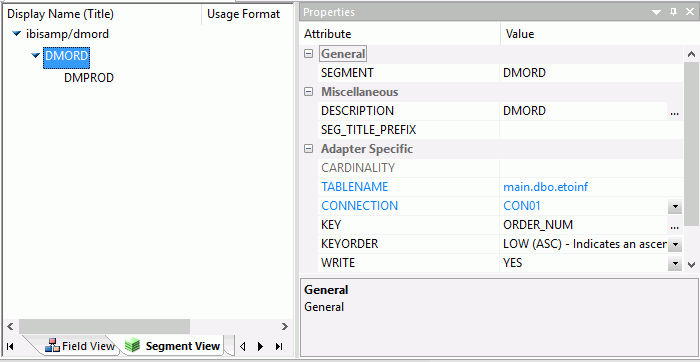

The Segment View tab shows a hierarchy of segments on the left, with the attributes and values of the selected item on the right, as seen in the following image.

Segment View Tab

Reference: Synonym Editor - List View Tab

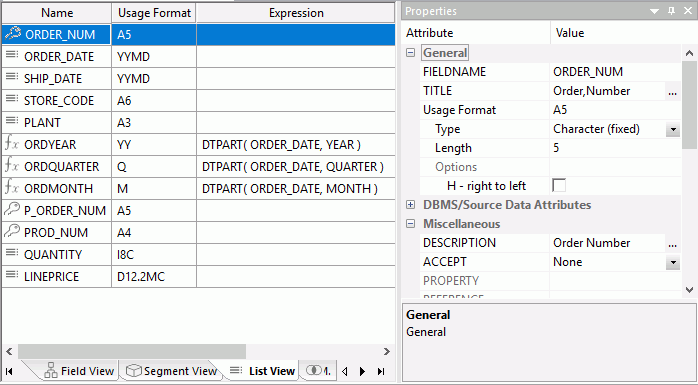

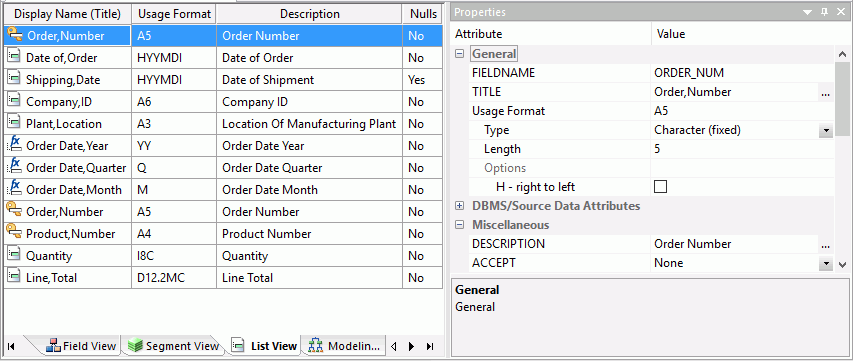

The List View tab shows a list of objects on the left, with the attributes and values of the selected item on the right, as shown in the following image.

List View Tab

Reference: Synonym Editor - Segment Shortcut Menu

When you right-click a segment in the Synonym Editor, the shortcut menu shown in the following image appears in both the Field View and Segment View tabs. This image shows a SQL data source with the root segment selected.

The following options are available:

Properties

Opens a pane showing the properties of the selected segment.

Insert

Enables you to insert one of the following:

Reference to Existing Synonym as Child

The reference is a pointer to the source synonym using the synonym as a child. If you subsequently make changes to the source synonym, reopening the current synonym will reflect those changes.

Reference to Existing Synonym as Root

The reference is a pointer to the source synonym using the synonym as a root. If you subsequently make changes to the source synonym, reopening the current synonym will reflect those changes.

Segment via Metadata Import

Enables you to create and add a new synonym to the current synonym using the Create Synonym tool.

Segment Manually

Adds a synonym that must be coded manually.

Field

Adds a general column to the segment.

Define

Adds a virtual or defined column to the segment.

Filter

Adds a filter to the segment.

Compute

Adds a calculated value to the file.

Sort Object

Adds a Sort Objects folder and a sort object. This option is available only if the Support extended options option is selected and is not used with DataMigrator.

Variable

Adds a Variables folder and a variable to the segment.

Style

Adds a Styles folder and a style object. This option is available only if the Support extended options option is selected and is not used with DataMigrator.

Subquery

Adds a subquery to the fields list.

Index

Adds an Index folder and an index.

Data Profiling

Provides the characteristics of the data for a segment. The following options are available:

Statistics

Shows statistic values for the selected segment only.

Count

Shows a count of the number of rows in the selected source table. For a multi-segment synonym, it shows the count for each segment.

Statistics with parent segment

This option is available only when viewing a lower segment of a hierarchy (cluster join).

Key Analysis

Allows you to select the columns that you would like to analyze as potential keys to the source table.

Values

Shows unique values and their percentages.

Duplicate Values

Shows identical values and their percentages.

Sample Data

Displays sample data in the workspace for the selected segment or synonym.

Sample Data with parent key

Displays sample data for the selected segment joined to the parent segment. This option is only available when a child segment is selected in a multi-segment synonym.

Delete

Deletes the segment.

Rename

Allows you to rename the segment.

Edit All Properties

Allows you to edit adapter specific properties, such as the delimiter value in a delimited flat file.

Assign SCD Columns

Allows you to assign columns to a SCD type by using drag-and-drop.

Join Properties

Opens the Join Editor so that you can specify how the selected segment is joined to the parent segment. This option is only available when a child segment is selected in a multi-segment synonym.

Reference: Synonym Editor - Column/Field Shortcut Menu

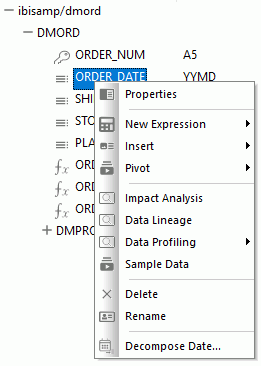

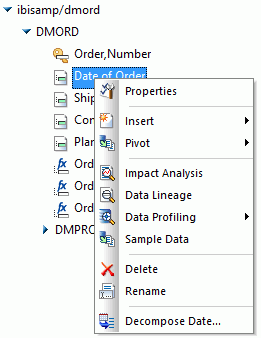

When you right-click a column in the Synonym Editor, a shortcut menu appears in both the Field View and List View tabs. The following image shows a SQL data source with a column selected.

Note: If you multi-select columns and right-click them, an abridged version of the shortcut menu opens.

The following options are available:

Properties

Opens a pane showing the properties of the selected column.

New Expression

Displays a shortcut menu with a list of available function that can be added to the synonym. Selecting one of the functions opens the Function Assist dialog box, which allows you to specify parameters for that function.

Insert
Enables you to insert one of the following:
Field

Adds a general column to the synonym.

Date/Time Function

Inserts a Date/Time function.

Filter

Adds a filter to the segment.

Grouping

Opens the Group values for dialog box, where you can configure group values.

Aggregation Function

Provides a choice of preconfigured aggregation functions that open in the Function Assist dialog box. The selected functions will be saved in the Constant Defines/Computes folder for the synonym.

Analytic Function

Provides a choice of preconfigured analytic functions that open in the Function Assist dialog box. The selected functions will be saved in the Constant Defines/Computes folder for the synonym.

Sort Object

Adds a Sort Objects folder and a sort object.

Variable

Adds a Variables folder, if needed, and a variable.

Style

Adds a Styles folder and a style object.

Subquery

Adds a subquery to the fields list.

Pivot

The following option is available:

Multiple columns to rows

Allows you to turn (or pivot) columns into rows or a single column into multiple columns, for retrieval.

Impact Analysis

Displays an Impact Analysis report for the particular column in the workspace. An Impact Analysis report identifies the procedures that access a Master File or field within a Master File.

Data Lineage

Provides the ability to see how the column was derived.

Data Profiling
Provides the characteristics of the data for a column. For more information, see Viewing Data Profiling Characteristics.
Statistics

Shows statistic values for the selected segment only.

Key Analysis

Allows you to select the columns that you would like to analyze as potential keys to the source table.

Hex View

Shows hexadecimal value of the selected field.

Values

Shows a values report for the selected column.

Values Graph

Displays a graph for both alpha and numeric field types.

Values Pie Graph

Displays a pie graph.

Duplicate Values

Shows identical values and their percentages.

Outliers

Shows outlier report for the selected column.

Sample Data

Displays sample data in the workspace.

Delete

Deletes the column.

Rename

Allows you to rename the column.

Decompose Date

Reference: Synonym Editor - Modeling View Tab

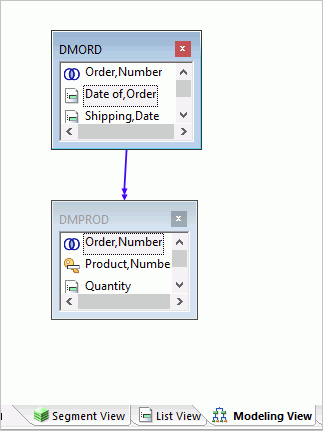

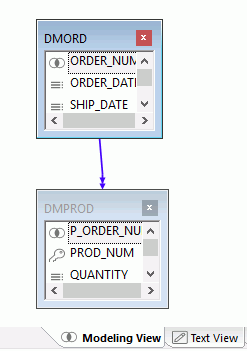

The Modeling View tab shows a graphical representation of the synonym, as shown in the following image. Use the Modeling View to define dimensions for OLAP analysis, view join properties, create cluster joins, and add or edit segments.

Reference: Synonym Editor - Text View Tab

The Text View tab shows the description of the underlying table.

You can print the synonym syntax by selecting Print from the Application menu.

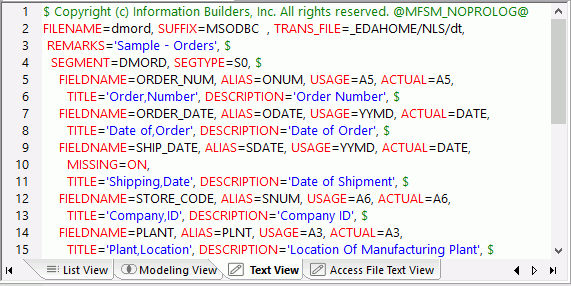

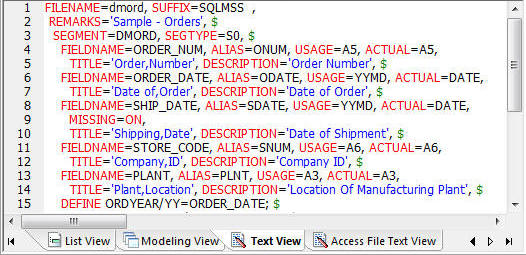

The image below is an example of an MS SQL Server data source in the Text View tab.

Text View Tab

Reference: Synonym Editor - Access File Text View Tab

The Access File Text View tab shows the description of the Access File for a synonym, which is used to access the database.

Note: You can print the synonym syntax by selecting Print from the Application menu.

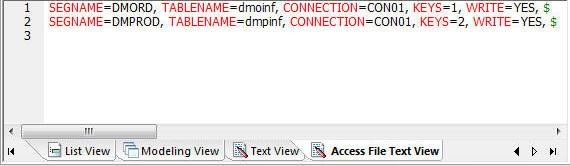

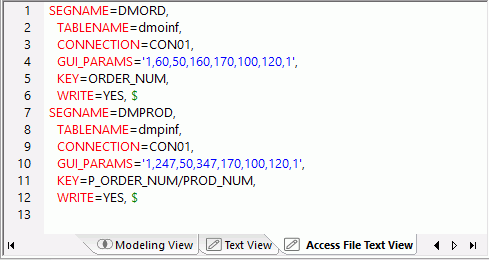

The image below is an example of an SQL data source in the Access File Text View tab.

Access File Text View Tab

Note: While you can edit the text views, it is highly recommended that you do so with care. Editing the synonym incorrectly can invalidate the synonym.

Reference: Metadata Tab

The Metadata tab in the ribbon contains groups and commands that provide quick access to commonly performed functions while working in the Synonym Editor. The behavior of the command is determined by the selected object. Therefore, certain tab commands may be inactive.

The Metadata tab contains the following additional groups:

View Group
Field

Switches to the Field View in the workspace.

Segment

Switches to the Segment View in the workspace.

List

Switches to the List View in the workspace.

Modeling

Switches to the Modeling View in the workspace.

Text

Switches to the Text View in the workspace.

Access File Text

Switches to the Access File Text View in the workspace.

Aerial View

Opens the Aerial View window. This view is only available when in the Modeling View tab.

Insert Group
Insert

The Insert command allows you to insert one of the following:

  • Reference to Existing Synonym as Child
  • Reference to Existing Synonym as Root
  • Copy of Existing Synonym
  • Segment via Metadata Import
  • Segment Manually
  • DBA
  • Field
  • Define
  • Filter
  • Compute
  • Group
  • Sort Object
  • Variable
  • Style
Reports Group
Sample Data

Enables you to view and refresh sample data for the object.

Data Profiling

Provides the data characteristics for synonym columns. The following options are available:

  • Statistics
  • Count
  • Key Analysis
Impact Analysis

Runs the impact analysis report for the selected column.

Tools Group
Properties

Displays the Properties panel for the selected object.

Quick Copy

This option is only available when the synonym name (root) is selected. For more information, see Creating a Quick Copy.

DBA

Adds field/value security DBA.

Business View

Enables you to create a Business View and a custom Master File that can use selected fields from the original synonym. In addition, you can customize field names, titles, and descriptions.
