Graph-Specific Properties and Methods

When you select a 3D graph type with the GraphType property, use these properties to control the appearance of the 3D cube:

• CubeFocusFactor (0...100); This property sets the focus factor for setting perspective distortion in a 3D graph.
• CubeIsometricProjection (true/false); This property enables (true)/disables (false) isometric projection.
• CubeLightSourceX/Y/Z (0...100); These properties set the cube light source for the X-, Y-, and Z-coordinates (unit space).
• CubeProportional(true/false); Define the axis size proportional to the number of series (false) or groups (true).
• CubeRiserInterpolation(); This property controls whether risers in 3D graphs are interpolated (faster) or explicitly calculated (more accurate).
• CubeSizeX/Y/Z (0...100); These properties set the size of the 3D cube in the (user) X-, Y-, and Z-directions.
• CubeTranslationX/Y/Z (0...100); These properties set the translation of a 3D cube (in 3D cube coordinates) in the X-, Y-, and Z-direction.
• CubeViewerX/Y/Z (0...100); These properties set the viewer location (in 3D coordinates) in the X-, Y-, and Z-direction.
• CubeWallThickX/Y/Z (0...100); These properties set the thickness of the 3D-cube wall in the (user) X-, Y-, and Z-direction.
• CubeZoomFactor (0...100); This property sets the global scaling factor for zooming in/out.
• Display3DFloor (true/false); This property enables/disables the display of the floor of the cube in a 3D graph.
• Display3DLeftWall (true/false); This property enables/disables the display of the left wall of the 3D cube.
• Display3DRightWall (true/false); This property enables/disables the display of the right wall of the 3D cube.
• Viewing3DAnglePreset (-1...15); This property selects an entry in the table of preset viewing angles for 3D graphs.

Graph Types and 3D Preset Viewing Angles includes an illustration of each of these preset viewing angles. Also see 3D Grid Lines and Riser and Marker Properties for information about properties that you can use to control the appearance of grid lines and risers in the 3D cube.

When you select a pie graph is selected with the GraphType property, you can use these properties and methods to control attributes that are specific to a pie graph:

• OtherPercentage(0...100%); This property sets the percentage at which a slice in a pie graph will be grouped into the other slice when the OtherSeries property is enabled.
• OtherSeries(true/false); This property enables/disables the bundling of small slices (less than OtherPercentage) into a single slice that is labeled other.
• PieDepth (0...100); This property specifies the depth of the pie crust in a pie graph or a funnel graph. 30 is the default value.
• PieFeelerTextDisplay (0...3); This property enables (true)/disables (false) the display of feelers and data text in a pie graph.
• PieFeelerTextFormat (0...14); This property determines the format of values that are drawn next to feelers in a pie graph.
• PieLabelDisplay (0...3); This property determines the format of labels displayed next to feelers in a pie graph. 1 is the default value.
• PieRingSize (0...100); This property determines the size of the ring (inner circle) in a ring pie. 30 is the default value.
• PieRingTotalDisplay (true/false); This property enables (true)/disables (false) the display of a total value in the center of a pie ring graph.
• PieRingTotalFormat: When the PieRingTotalDisplay property is set to true and the total data value is displayed in the center of a ring pie graph, this property sets the format of the data value.
• PieRotate (0...359); This property rotates a pie or funnel graph a specified number of degrees. 0 is the default value.
• PieSorting(0...3); This property defines the order in which pie slices are drawn.
• PiesPerRow (integer); This property specifies the number of pies to be drawn in a row in multi-pie graphs. 2 is the default value.
• PieTilt (0...100); This property tilts a pie or funnel graph a specified number of degrees. 15 is the default value.
• PieBarSeries (0...# of Series in graph); This property selects the series that will be used to map the bar in a pie-bar graph. 0 is the default value.
• get/setPieSliceDelete(); These methods get/set a Boolean value indicating whether or not slices have been deleted from a pie graph.
• get/setPieSliceDetach(); These methods get/set the distance that slices are detached from a pie graph.
• restoreAllSlices(); This method restores all detached/deleted slices from a pie graph.
• isChartPieType(); This method returns a Boolean indicating whether or not the GraphType property is set to one of the pie graphs.

When you select a stock graph with the GraphType property, use these properties and methods to control attributes that are specific to a stock graph:

• DataTextTemplateHiLo; This property assigns a special format macro to data text labels when they are enabled for display in a stock graph.
• Stock52WeekHighValue(); This property gets and sets the 52-week high value assigned to a stock graph.
• Stock52WeekLowValue() This property gets and sets the 52-week low value assigned to a stock graph.
• Stock52WeekHighDisplay (true/false); This property enables (true)/disables (false) the display of a 52-week high line in a stock graph.
• Stock52WeekLowDisplay (true/false); This property enables (true)/disables (false) the display of a 52-week low line in a stock graph.
• StockCloseSplitDisplay (true/false); This property enables (true)/disables (false) the display of split risers at the stock close value.
• StockCloseTicksDisplay (true/false); This property enables (true)/disables (false) the tick marks at the stock close value.
• StockMovingAverageDisplay (true/false); This property enables (true)/disables (false) the display of a moving average line in a stock graph.
• StockOpenTicksDisplay (true/false); This property enables (true)/disables (false) the tick marks at the stock open values.
• StockTickLength (Integer); This property determines the length of tick marks in a stock graph.
• ViewableGroupsStock: This property specifies the maximum number of groups to be imaged in a stock graph.
• ViewableSeriesStock: This property specifies the maximum number of series to be imaged in a stock graph.
• isChartStockType(); This method returns a Boolean indicating whether or not the GraphType property is set to one of the stock graphs.

The following properties and methods format special items that are only available in bubble graphs:

• DataTextTemplateBubble: This property assigns a special format macro to data text labels when they are enabled for display in a bubble graph.
• QuadrantLineCountX: This property selects a number of quadrant lines on the X-axis in a bubble graph.
• QuadrantLineCountY: This property selects a number of quadrant lines on the Y-axis in a bubble graph.
• getQuadrantLine(); This method gets the object ID of the quadrant lines in a bubble graph.
• getQuadrantLineValueX(); This method gets the vertical location of an X quadrant line.
• getQuadrantLineValueY(); This method gets the horizontal location of a Y quadrant line.
• setQuadrantLineValueX(); This method sets the vertical location of an X quadrant line.
• setQuadrantLineValueY(); This method sets the horizontal location of a Y quadrant line.

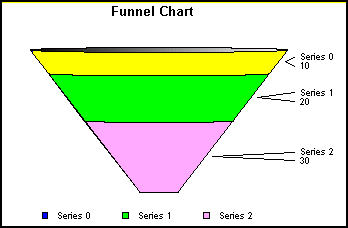

A funnel graph is basically a pie graph that shows only one group of data at a time. The series in the group are stacked in the funnel with the first series at the top and the last series at the bottom.

Example:

Use the following methods to define the initial setup of a funnel graph:

setTransparentBorderColor(getFrame(), true);
setDisplayFunnelGroup(int nGroup); // Group to show
setGraphType(106);

You must set which group of data you wish to display.

The funnel graph contains graph specific objects:

• Feelers.
• Funnel value labels.
• Funnel labels (frequently referred to as the series labels).

The following methods return the object ID of these funnel graph objects:

getFunnelFeeler()
getFunnelValueLabel()
getFunnelLabel()

The following property defines which group to display in the funnel graph. 0 is the default value.

setDisplayFunnelGroup(int nGroup)

The following property defines the location of labels in a funnel graph.

setFunnelLabelValueLocation(int nLocation)

where:

nLocation

Can be set to a value in the range 0...2. 0 is the default value.

The following pie graph properties can be used in funnel graphs:

• setPieDepth(0...100); Sets the depth of the funnel graph. 30 is the default value.
• setPieRotate(0...259); Sets the length of the funnel tip. 50 is the default value.
• setPieTilt(0...100); Sets the amount of tilt toward the viewer.

For every funnel graph, it is recommended that you set the transparent border color of the graph frame to true. This overrides the default behavior (normally false for other graph types) of showing a black rectangle around the frame and will create a better looking funnel graph.

setTransparentBorderColor(getFrame(), true)

To change the color of the funnel feeler, use setBorderColor(). For example:

setBorderColor(getFunnelFeeler(), Color.red)

When the GraphType property selects a gauge graph (setGraphType(110)), the following properties can be used to modify the appearance of the graph:

• GaugeBackgroundStyle; Defines the style of the gauge background.
• GaugeDescending; Draw gauge values in ascending or descending order.
• GaugeIgnoreBackgroundStyle; Ignore/obey the GaugeBackgroundStyle property.
• GaugeMajorAutoStep; Enable/disable automatic calculation of the number of major grid/tick steps. If this property is disabled (FALSE), Y1MajorGridStep defines the number of major grid steps.
• GaugeMajorTickRelativeTickLength; Get/set the relative length of major ticks.
• GaugeMinorAutoStep; Enable/disable automatic calculation of the number of minor grid/tick steps. If this property is disabled (FALSE), Y1MinorGridStep defines the number of minor grid steps.
• GaugeMinorTickRelativeTickLength; Get/set the relative length of minor ticks.
• GaugeNeedleStyle; Get/set the gauge needle style.
• GaugeRelativeInnerRadius; Get/set the relative size of the inner radius.
• GaugeRelativeThickness; Get/set gauge's relative thickness.
• GaugeStartAngle; Get/set gauge start angle.
• GaugeStopAngle; Get/set gauge stop angle.
• GaugeTitlePosition; Set the title positioning. See Set the Title Position in a Gauge Chart.

The setFontSize...() methods can be used to modify the size of gauge labels. For example:

IdentObj identObj = getGaugeLabel();
setFontSizeAbsolute( identObj, true );
setFontSize( identObj, 9 );

The setTextFormatPreset() method can be used to change the format of gauge labels:

IdentObj identObj = getGaugeLabel();
setTextFormatPreset( identObj , 5 /*$0*/ );

The setURL() method also works with gauges. A URL can be attached to a gauge (multi gauge graph) as shown in the following example:

IdentObj identObj = getGaugeBackground();
// group 1
identObj.setGroupID(1);
setURL( identObj,
"http:://www.google.com" );

• The setDisplay() method displays the value of the gauge on its background. See Control the Display of the Value in the Gauge Chart.
• The setY1ExcludeMinLabel() method displays the minimum value of the gauge on its background. Control the Display of the Minimum Value on the Gauge Scale.
• The setY1ExcludeMaxLabel() method displays the maximum value of the gauge on its background. See Control the Display of the Maximum Value on the Gauge Scale.

Also see the Gauge Graph objects.

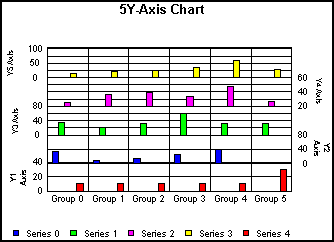

In addition to dual-axis graphs, 3Y-, 4Y-, and 5Y-axes graphs (GraphType 103...105) are also available.

Example:

Series must be assigned to the axes using setAxisAssignment().

setAxisAssignment(getSeries(0), 1);
setAxisAssignment(getSeries(1), 2);
setAxisAssignment(getSeries(2), 3);
setAxisAssignment(getSeries(3), 4);
setGraphType(105)

By default, the series risers assigned to each axis are staggered. The AlignMultiYBars property can be used to align the bars on each axis.

By default, axis labels are staggered with odd numbered (1/3/5) axis labels on the left and even numbered (2/4) axis labels on the right. These default settings can be changed with setAxisSide().

Example:

setAxisSide(getY3Axis(),1); //Y3 Axis on Right
setAxisSide(getY4Axis(),0); //Y4 Axis on Left

The size of each axis can be changed using the following method:

setAxisSize(IdentObj id, int newValue)

where:

newValue

Is 0...100. 1 (automatic) is the default value.

Example:

setAxisSize(getY1Axis(), 20);

If the AxisSize is set to 0 (automatic) for all axes, automatic sizing of axes and offsets will occur. This is the default setting for each axis. In other words, axes and offsets will be sized proportionally dividing the available space of the frame evenly. If an even distribution between each axis is desired, there is no need to set the axis size or the axis offset.

When you select a Pareto graph (GraphType 102), the X-axis scale is for group numbers. The Y-axis scale is the percent of the total accumulation for each selected series. Each graph displays a single series. Use the DisplayParetoSeries property to define the single series to be shown in the Pareto graph.

Example:

setDisplayParetoSeries (1);
setGraphType(102);

The default Pareto series is zero.

The ParetoDisplayThreshold property can be used to split the frame and accumulation line per the desired percent. (1...100). 1 (no split) is the default.

Example:

setParetoY2MajorGridStep(5);

The ConnectParetoBars property can be used to connect/disconnect (true/false) the bars in a Pareto graph.

Note: In a Pareto graph, the maximum Y1 axis value is set as the total of all the risers. Therefore, the setScaleMax property is ignored for a Pareto graph.

When you select a waterfall graph (GraphType 100 (vertical) or 101 (horizontal)), groups within the graph are identified as subtotals, totals, or extra. The waterfall graph automatically performs the cumulative sum when using subtotal or total. Groups labeled as extra are ignored in waterfall calculations.

Note: Values in a given group in a stacked waterfall must be all negative or all positive. Zero is treated as a positive number. If the data contains mixed signs, the sign of the first series controls whether the entire stack will be treated as all positive or all negative.

See Data in a Waterfall Graph for more information about setting up the data required for a waterfall graph and restrictions.

The following methods can be used to select a vertical or horizontal waterfall graph:

setGraphType(100); // WATERFALL_VERT = 100;
setGraphType(101); // WATERFALL_HORZ = 101;

The setWaterfallGroupMode() method assigns each group in the data set to be graphed as a normal, a subtotal, total, or extra group.

void setWaterfallGroupMode(int nGroup, int nGroupMode);

where:

nGroup

Is a group number.

nGroupMode

Can be one of the following:

int WATERFALLGROUPMODE_NORMAL = 0;
int WATERFALLGROUPMODE_SUBTOTAL = 1;
int WATERFALLGROUPMODE_TOTAL = 2;
int WATERFALLGROUPMODE_EXTRA = 3;

By default the group mode is set to normal. If a waterfall group is set to subtotal or total, the data for this group is ignored and the cumulative total up to this point is shown for this group. Only one group can be designated as total or extra. Total is computed the same way as a subtotal except there is only one of them. For the best visual presentation, the group designated as extra should be the last group in the graph. A group designated as extra is not used in performing any waterfall cumulative sums. It appears as stacked data.
