Creating Metadata and Sample Reports for the Adapter for ESRI ArcGIS Using Premium API Calls

How to:

Create Synonym for the Adapter for ESRI ArcGIS creates the metadata and sample WebFOCUS reports used for WebFOCUS reporting against data returned from the Premium ESRI ArcGIS Online API calls.

Procedure: How to How to Create Metadata and Sample Reports for Premium API Calls

  1. From the DMC, expand the Adapters folder, then the Configured folder, and then the ESRI ArcGIS folder.
  2. Right-click the configured connection for the ESRI ArcGIS connection (for example, CON02) that has access to Premium ArcGIS Online API calls, and click Show DBMS objects from the context menu, as shown in the following image.

    Creating a synonym using an Esri ArcGIS connection

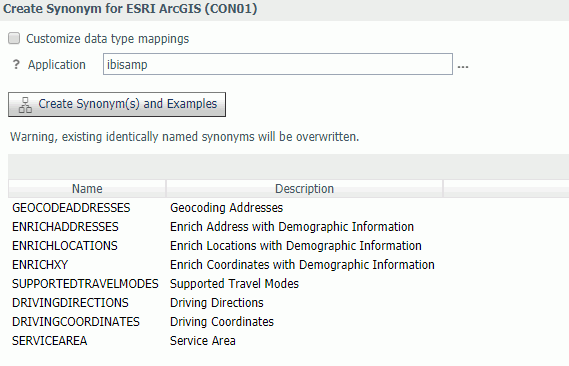

    The Create Synonym for ESRI ArcGIS pane opens, as shown in the following image.


    Create Synonym pane
  3. Enter a specific application in the Application field, or click the ellipsis button to the right of the field to select an application where the metadata and sample reports are to be stored.
  4. Click Create Synonym(s) and Examples.

    The Create Synonym for ESRI ArcGIS Status pane opens and indicates that the synonym was created successfully.
