Using Variables in a Synonym

How to:

Add a Variable to a Synonym
Add a Variable for an Attribute

The Synonym Editor allows you to define variables in a synonym in order to specify synonym attributes, such as the connection name or the table name. For an example of how variables in a synonym can be used, see Iterating through Multiple Tables.

Procedure: How to Add a Variable to a Synonym

Right-click an object in the Synonym Editor, point to Insert, and then click Variable.

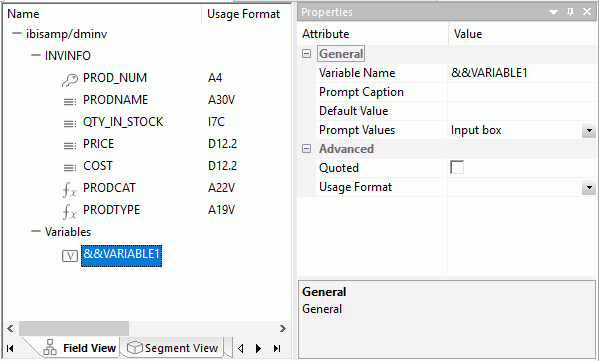

A new folder named Variables is added to the object tree, with &&VARIABLE1 as an entry. The Properties pane shows the attributes of the variable, as shown in the following image.
If desired, change the name of the variable and enter a default value in the appropriate fields.

Procedure: How to Add a Variable for an Attribute

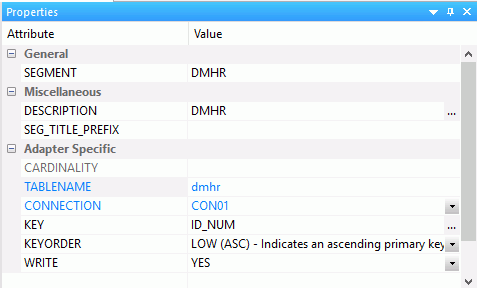

Attributes in a synonym that can be specified with a variable are identified with an attribute name in blue, as shown in the following image.

To add variables for an attribute:

Right-click the attribute in the Properties pane and click Parameterize Value.

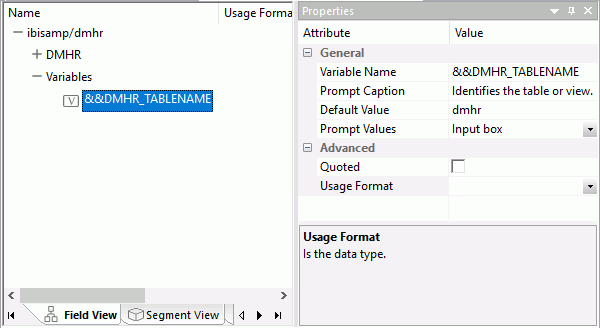

Expand the Variables folder. A variable with a name that combines the synonym name with the variable name has been added.

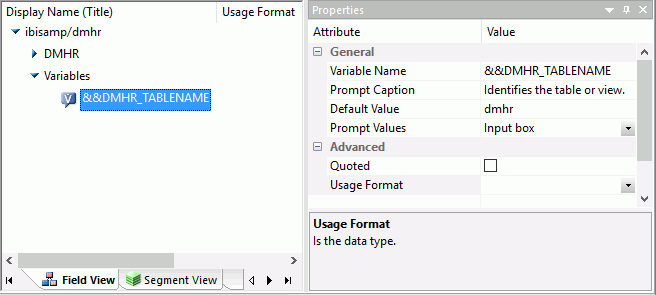

Click the variable name to assign values, as shown in the following image.
