Controlling the Location of the Legend Markers

Syntax: How to Control the Position of the Legend Markers

legend: {markerPosition: 'string'}

where:

markerPosition: 'string'

Is a string that defines the location of legend markers relative to the legend label. Valid values are:

'bottom'
'left'. This is the default value.
'right'
'top'

Example: Controlling the Position of the Legend Markers

The following request places the legend markers below the legend labels:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
  legend: {markerPosition: 'bottom'},
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'}
]
*END
ENDSTYLE
END

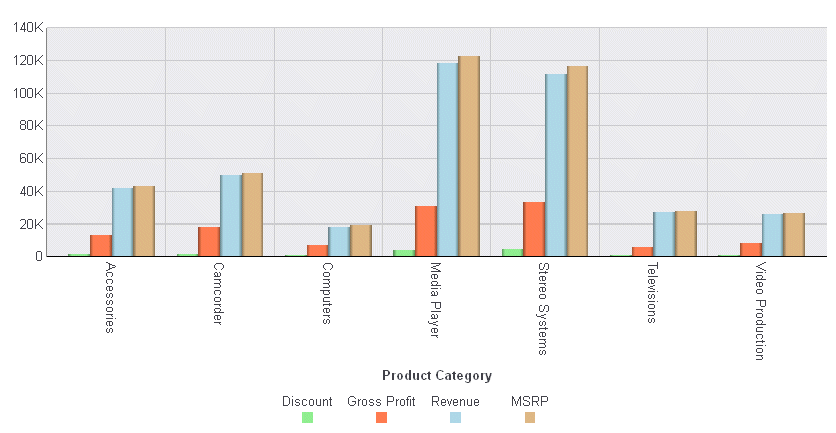

The output is:

The following version of the request moves the legend to the right of the chart and places the legend markers to the right of the legend labels:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
  legend: {position: 'right', markerPosition: 'right'},
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'}
]
*END
ENDSTYLE
END

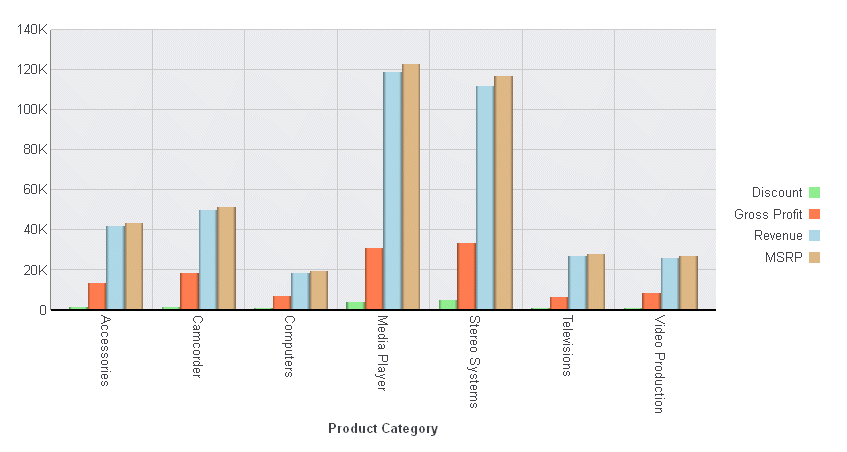

The output is:

The following legend properties change the marker position to 'top' with the legend position to the right. They also draw a border around the legend:

legend: {
    position: 'right',
     markerPosition: 'top',
     lineStyle: {color: 'blue'}
 }

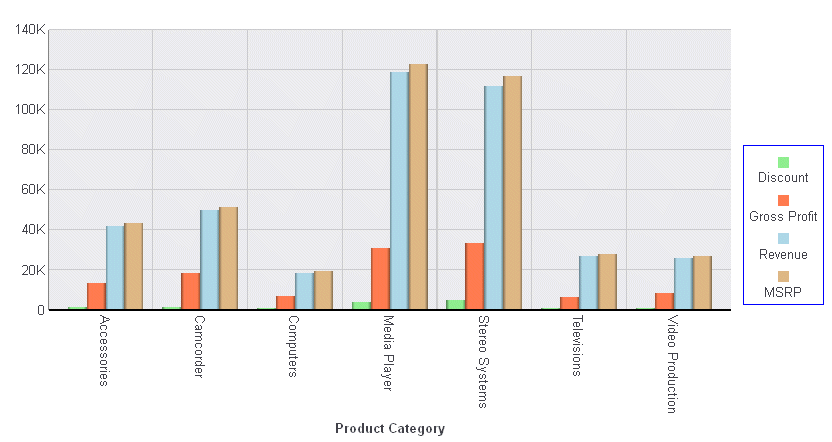

These legend properties generate the following chart:
