Formatting an Axis Title

Topics:

How to:

The title properties control the content, visibility, and format of an axis title.

Syntax: How to Format an Axis Title

axisname: {
  title: {
    text: 'string',
    visible: boolean,
    font: 'string',
    color: 'string',
    position:'orthogonal'
}
}

where:

axisname

Can be:

  • xaxis
  • yaxis
  • y2axis
  • zaxis
text: 'string'

Is a string that defines axis title text. The default value for xaxis is the sort field name or title, or the name assigned with an AS phrase.

visible: boolean

Controls the visibility of the axis title. Valid values are:

  • true, which makes the axis title visible.
  • false, which makes the axis title not visible. This is the default value.
font: 'string'

Is a string that defines the size, style, and typeface of the axis title. The default value for xaxis is 'bold 9pt Sans-Serif'.

color: 'string'

Is a string that defines the color of the axis title using a color name or numeric specification string. The default value is 'black'.

For information about defining colors, see Colors and Gradients.

position: 'orthogonal'

Applies to the y-axis and y2-axis. Places the title above and centered over the axis body line.

Example: Formatting the Axis Titles

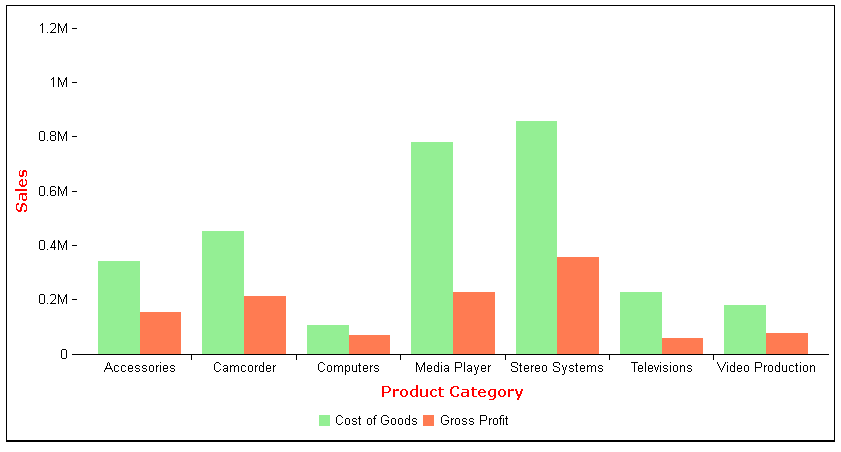

The following request makes the axis titles visible and red. It changes the font for the axis titles to bold 10pt Verdana:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
  xaxis: {title: {visible: true, color: 'red',
   font: 'bold 10pt Verdana'}},
  yaxis: {title: {visible: true, color: 'red',
   font: 'bold 10pt Verdana',text:'Sales'}},
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'}
]
*END
ENDSTYLE
END

The output is:

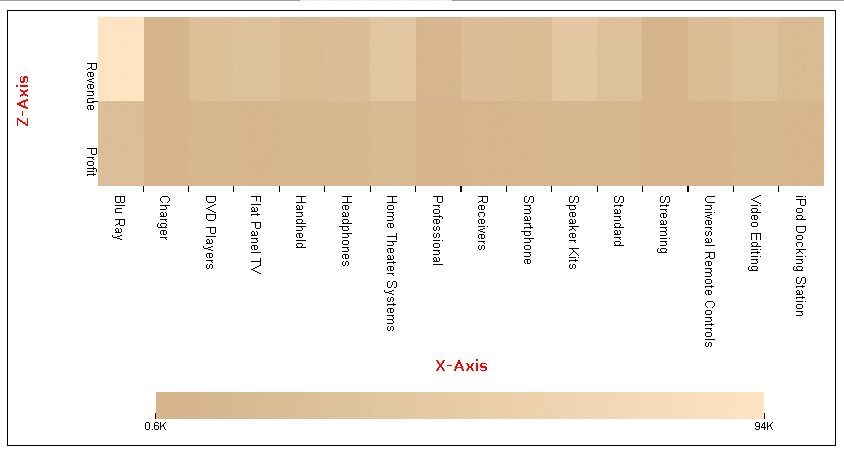

The following request generates a heatmap with x- and z-axis titles in red, with font bold 10pt Verdana:

GRAPH FILE WF_RETAIL_LITE
SUM  REVENUE_US AS 'Revenue'
        GROSS_PROFIT_US AS 'Profit'
BY PRODUCT_SUBCATEG
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH SPECTRAL
ON GRAPH SET STYLE *
*GRAPH_JS
colorScale: {colors: ['tan', 'bisque'] },
xaxis: {title: {visible: true, color: 'red',
   font: 'bold 10pt Verdana',text: 'X-Axis'}},
zaxis: {title: {visible: true, color: 'red',
   font: 'bold 10pt Verdana',text: 'Z-Axis'}},
*END
ENDSTYLE
END

The output is:

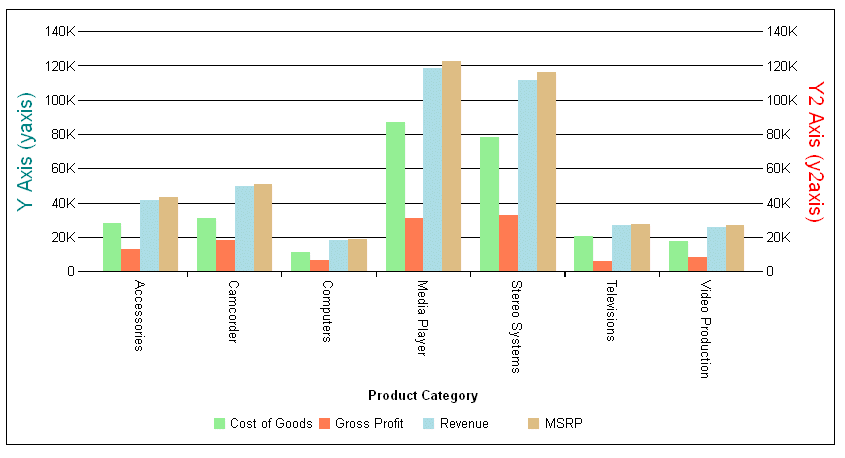

The following request assigns two series to the y-axis and two to the y2-axis and formats the titles for those axes:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US REVENUE_US MSRP_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
yaxis:{title: {visible: true, text: 'Y Axis (yaxis)',
   font: '14pt Sans-Serif', color: 'teal'}},
y2axis:{title: {visible: true, text: 'Y2 Axis (y2axis)',
   font: '14pt Sans-Serif', color: 'red'}},
series: [
    {series: 0, color: 'lightgreen', yAxisAssignment: 1},
    {series: 1, color: 'coral', yAxisAssignment: 2},
    {series: 2, color: 'lightblue', yAxisAssignment: 1},
    {series: 3, color: 'burlywood', yAxisAssignment: 2},
]
*END
ENDSTYLE
END

The output is:

The following request generates a polar chart and formats the y-axis label:

GRAPH FILE WF_RETAIL_LITE
SUM DAYSDELAYED QUANTITY_SOLD
ACROSS TIME_MTH
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH POLAR
ON GRAPH SET STYLE *
*GRAPH_JS
legend: {visible: false},
polarProperties: {
  straightGridLines: false,
  extrudeAxisLabels: true
},
yaxis: {
  title: {visible: true,  text:'y-axis title',
     font: '12pt Sans-Serif', color: 'red'},
  majorGrid: {visible: true, lineStyle: {width: 1,color: 'teal'}},
}
*END
ENDSTYLE
END

The output is:

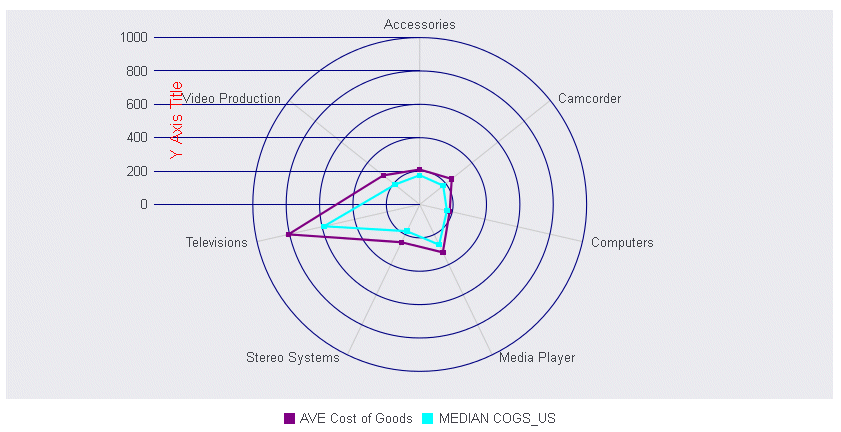

The following request generates a radar chart with a y-axis title:

GRAPH FILE WF_RETAIL_LITE
SUM AVE.COGS_US MDN.COGS_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH RADARL
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible: true},
polarProperties: {extrudeAxisLabels: true},
  yaxis: {title: {visible: true, text:'Y Axis Title',
   font: '12pt Sans-Serif', color: 'red'},
  majorGrid: {lineStyle: {width: 1,color: 'navy'}},
},
series: [
   {series: 0, color: 'purple', border: {width: 2}},
   {series: 1, color: 'cyan', border: {width: 2}},
]
*END
END

The output is:

Defining the Position of the Y-Axis or Y2-Axis Title

How to:

The position: 'orthogonal' property places the y-axis or y2-axis title above and centered over the y-axis or y2-axis body line.

Syntax: How to Position the Y-Axis Title Over the Y-Axis Body Line

axisname: {
   title:{
     visible: true,
     position:'orthogonal'
}
}

where:

axisname

Can be one of the following:

  • yaxis
  • y2axis

Example: Positioning the Y-Axis Title Over the Y-Axis Body Line

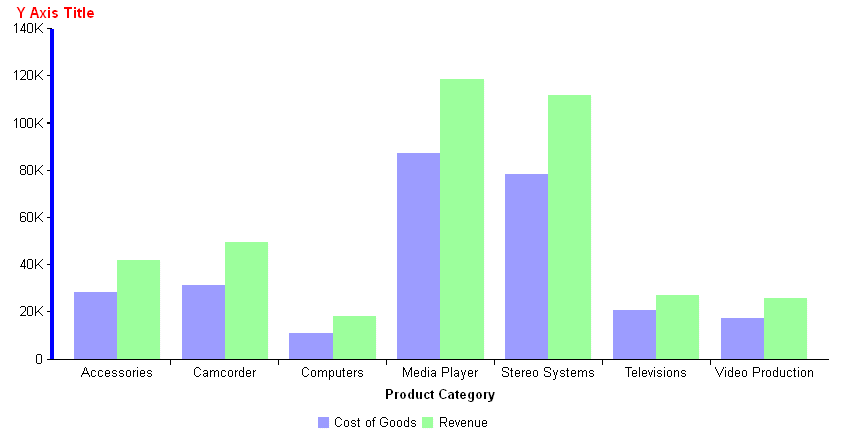

The following request makes the y-axis title red and bold 10pt Arial, and places it over the y-axis body line:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US REVENUE_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
border: {width:0},
yaxis: {
   title:{visible: true, position:'orthogonal',
   font: 'bold 10pt Arial',color: 'red'},
   bodyLineStyle: {width: 4, color: 'blue'}
}
*END
ENDSTYLE
END

The output is:
