Controlling the Appearance of a Numeric Axis Base Line

Syntax: How to Control the Appearance of a Numeric Axis Base Line

axisname:
{
  baseLineStyle: {
    width: number,
    color: 'string',
    dash: 'string'
  }
}

where:

axisname

Can be:

xaxis
yaxis
y2axis

width: number

Is a number that defines the width of the base line.

color: 'string'

Is a string that defines the color of the base line using a color name or numeric specification string.

For information about defining colors, see Colors and Gradients.

dash: 'string'

Is a string that defines the dash style. The default value is '' (which generates a solid line). Use a string of numbers that defines the width of a dash followed by the width of the gap between dashes (for example, dash: '1 1' draws a dotted line).

Example: Controlling the Appearance of a Numeric Axis Base Line

The following request against the WF_RETAIL_LITE data source makes the y-axis base line a green dashed line:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US QUANTITY
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VLINE
ON GRAPH SET STYLE *
*GRAPH_JS
border: {width: 2, color: 'teal'},
blaProperties: {lineConnection: 'curved'},
yaxis: {
  baseLineStyle: {width: 4, color: 'green', dash: '4 4'}
}
*END
ENDSTYLE
END

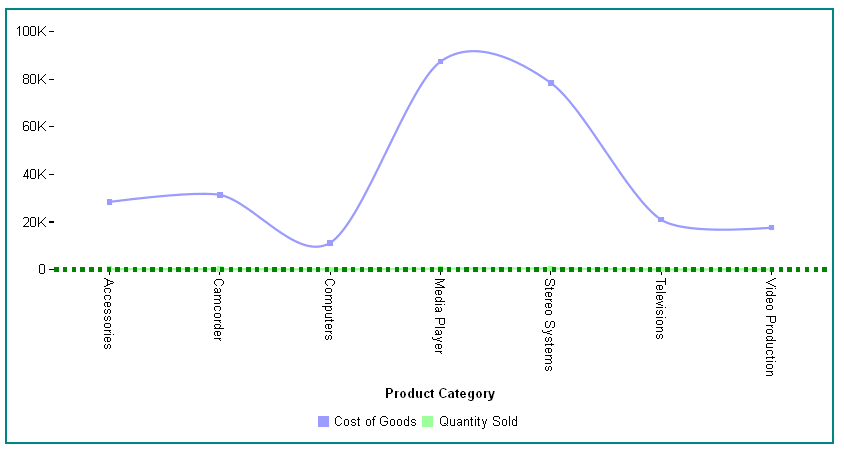

The output is:
