Annotations

The following object IDs are used to create annotations:

• IdentObj getAnnotation(int index)
• IdentObj getAnnotationBox(int index)

where:

index

Is a value in the range zero (0) to the maximum number of annotations set by setMaxNumAnnotations(int nMax). The default maximum number of annotations is 30.

Note that the title, subtitle and footnote objects have the same behavior as annotations. Their Object IDs are returned by the following methods:

• IdentObj getFootnote()
• IdentObj getFootnoteBox()
• IdentObj getSubtitle()
• IdentObj getSubTitleBox()
• IdentObj getTitle()
• IdentObj getTitleBox()

The setDisplay() method must be used to enable the annotation object:

• setDisplay(getAnnotation(index), true);

The setTextString() method can be used to define an annotation's label/string:

• setTextString(getAnnotation(index), "string");

The setFillColor() method can be used to define the color of the annotation label/string:

• setFillColor(getAnnotation(index), new Color(0,255,0));

Note that all other fill types are also available for annotation labels (that is, gradient, texture, and so on).

The normal font size methods can be used to set the font size of an annotation label.

Example:

setFontSizeAbsolute(getAnnotation(0),true);
setFontSizeInPoints(getAnnotation(0),20);

The setRect() function can be used to specify the location of an annotation object.

Example:

setRect(getAnnotation(0),new Rectangle(-15340,11000,29850,1800));

Note: If you do not specify a location, the annotation text is drawn in the default location (the center of the chart) and may not be detectable. This is due to the fact that a rectangle is not internally stored for the annotation. Unless specified otherwise, it will use the default rectangle set by setRect(). It is recommended you store a rectangle location for each annotation.

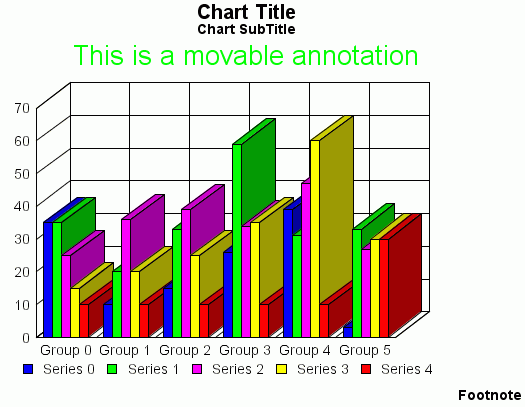

Example:

setDisplay(getAnnotation(0), true);
setTextString(getAnnotation(0), "This is a movable annotation");
setFillColor(getAnnotation(0), new Color(0,255,0));
setRect(getAnnotation(0),new Rectangle(-15340,11000,29850,1800));
setFontSizeAbsolute(getAnnotation(0),true);
setFontSizeInPoints(getAnnotation(0),20.0);

The setDisplay() method must be used to enable the annotation box object:

• setDisplay(getAnnotationBox(index), true);

The setFillColor() method can be used to define the color of the annotation box:

• setFillColor(getAnnotationBox(0), new Color(0,0,255));

The setTransparentBorderColor() method can be used to enable/disable the border color around the annotation box:

• setTransparentBorderColor(getAnnotationBox(0), false);
• setTransparentFillColor(getAnnotationBox(0), true);

See Beveled Borders for information about applying a border to an annotation box.

Example:

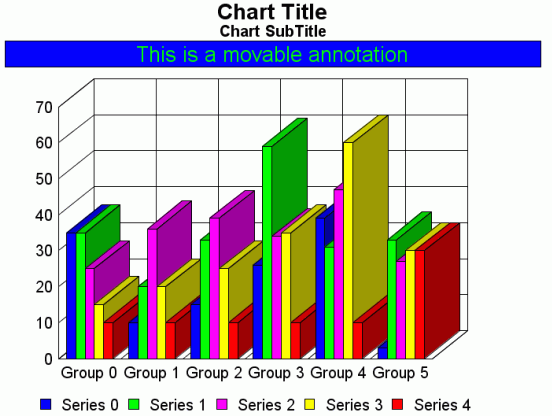

setDisplay(getAnnotation(0), true);
setTextString(getAnnotation(0), "This is a movable annotation");
setFillColor(getAnnotation(0), new Color(0,255,0));
setRect(getAnnotation(0),new Rectangle(-15340,11000,29850,1800));
setFontSizeAbsolute(getAnnotation(0),true);
setFontSizeInPoints(getAnnotation(0),20.0);
setDisplay(getAnnotationBox(0), true);
setFillColor(getAnnotationBox(0), new Color(0,0,255));
setTransparentBorderColor(getAnnotationBox(0), false);

The default maximum number of annotations is 30. For this first default set of annotations, the transparent fill color is set to true and border colors are omitted for the associated annotation box:

• setTransparentFillColor(getAnnotationBox(nnn), true);
• setTransparentBorderColor(getAnnotationBox(nnn), true);

The following methods can be used to get/set the maximum number of annotations:

• void setMaxNumAnnotations(int newValue);
• int getMaxNumAnnotations();

where:

newValue

Is a value in the range 0...999.

For annotations in excess of the default (30), the setTransparentFillColor() and setTransparentBorderColor() methods should be used to set transparent fill and border colors for the associated annotation box as desired:

• setTransparentFillColor(getAnnotationBox(nnn), true | false);
• setTransparentBorderColor(getAnnotationBox(nnn), true | false);
