Generating Descriptive Column Titles for Prefixed Fields

How to:

Generate Descriptive Column Titles for Prefixed Fields

By default, the column titles for prefixed fields have the name of the prefix operator added above or below the field name. Using the SET PRFTITLE command, you can generate longer, more descriptive column titles. These descriptive column titles use longer descriptions of the prefix operators, which will also be translated into any standard language for which the server is configured.

Syntax: How to Generate Descriptive Column Titles for Prefixed Fields

SET PRFTITLE = {SHORT|LONG}

ON TABLE SET PRFTITLE {SHORT|LONG}

where:

SHORT: Places the prefix operator name above the field name to generate the column title.
LONG: Generates descriptive column titles for prefixed fields that can be translated to other languages.

Example: Generating Descriptive Column Titles for Prefixed Fields

The following request uses prefix operators with the default value for SET PRFTITLE.

TABLE FILE WF_RETAIL_LITE
SUM COGS_US CNT.COGS_US AVE.COGS_US CNT.DST.COGS_US MIN.COGS_US MAX.COGS_US MDN.COGS_US
BY PRODUCT_CATEGORY
ON TABLE SET PAGE NOLEAD
ON TABLE SET STYLE *
GRID=OFF,$
ENDSTYLE
END

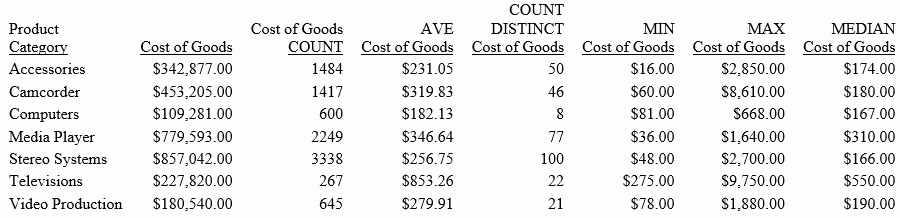

The output is shown in the following image.

The following version of the request sets PRFTITLE to LONG.

SET PRFTITLE = LONG
TABLE FILE WF_RETAIL_LITE
SUM COGS_US CNT.COGS_US AVE.COGS_US CNT.DST.COGS_US MIN.COGS_US MAX.COGS_US MDN.COGS_US
BY PRODUCT_CATEGORY
ON TABLE SET PAGE NOLEAD
ON TABLE SET STYLE *
GRID=OFF,$
ENDSTYLE
END

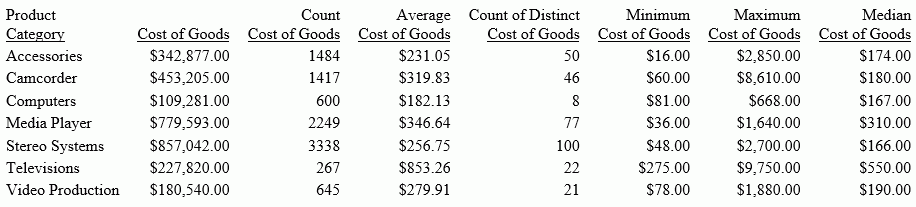

The output is shown in the following image.
