Formatting the Legend Title

How to:

The title property controls the visibility and format of the legend title.

Syntax: How to Format the Legend Title

"legend":
  {
   "title":
   {
      "visible": boolean,
      "text": "string",
      "font": "string",
      "color": "string"
      "tooltip": "string",
      "wrap": number
   }
 }

where:

"visible": boolean

Can be:

  • true, which makes the legend title visible.
  • false, which makes the legend title not visible. This is the default value.
  • "auto", which lets the chart engine determine legend visibility and placement.
"text": "string"

Is a string that defines the legend title text. The default value is "Legend Title".

"font": "string"

Is a string that defines the size, style, and typeface of the legend title. The default value is "10pt Sans-Serif".

"color": "string"

Is a string that defines the color of the legend title using a color name or numeric specification string. The default value is "black".

For information about defining colors, see Colors and Gradients.

"tooltip": "string"

Is a string, or a function that returns a string, to display when the mouse hovers over the legend title.

"wrap": number

Defines the number of lines for wrapping long titles. Can be an integer, which wraps long labels to that number of lines (if necessary), or "auto", which wraps long titles into as many lines as necessary. The default value is 1.

Example: Formatting the Legend Title

The following request defines a legend title that is red with a bold-italic 12pt Verdana font:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
"legend": {"title": {
		"visible": true,
		"text": "The Legend Title",
		"font": "bold italic 12pt Verdana",
		"color": "red"
		}},
"series": [
	{"series": 0, "color": "lightgreen"},
	{"series": 1, "color": "coral"},
	{"series": 2, "color": "lightblue"},
	{"series": 3, "color": "burlywood"}
	]
*END
ENDSTYLE
END

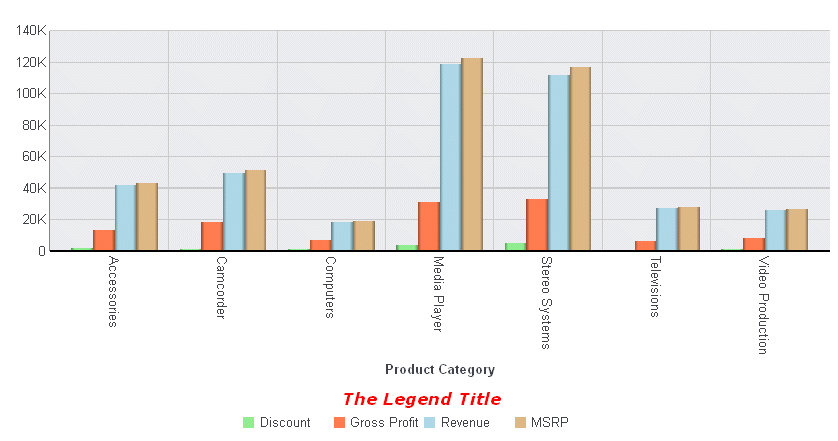

The output is:
