Y3LogScale

This property selects logarithmic or linear scaling for the Y3-axis. Any data items with Y3 values less than or equal to zero are graphed as null for log scale.

Syntax:

setY3LogScale(boolean)

boolean = getY3LogScale();

where:

boolean

Can be one of the following:

true uses logarithmic scale.

false uses linear scale. This value is the default.

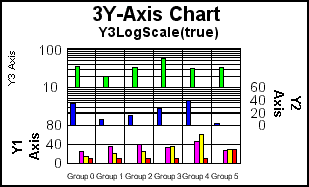

Example:

setDepthAngle(0);
setDepthRadius(0);
setFootnoteDisplay(false);
setAxisAssignment(getSeries(0), 1);
setAxisAssignment(getSeries(1), 2);
setGraphType(103);
setTitleString("3Y-Axis Chart");
setY1TitleString("Y1 Axis");
setY2TitleString("Y2 Axis");
setTextString(getY3Title(), "Y3 Axis");
   setY3LogScale(true);
setSubtitleString("Y3LogScale(true)");

setDepthAngle(0);
setDepthRadius(0);
setFootnoteDisplay(false);
setAxisAssignment(getSeries(0), 1);
setAxisAssignment(getSeries(1), 2);
setGraphType(103);
setTitleString("3Y-Axis Chart");
setY1TitleString("Y1 Axis");
setY2TitleString("Y2 Axis");
setTextString(getY3Title(), "Y3 Axis");

setY3LogScale(false);
setSubtitleString("Y3LogScale(false)");
