Using the Web Console

Topics:

How to:

x

The Web Console enables you to remotely view and manage the server environment. From a single, easy-to-use interface, you can:

Procedure: How to Open the Web Console

x

To open the Web Console:

  1. If the server is not running, start it using the instructions for your platform in the installation guide.
  2. Type the following URL in the address bar of the web browser:
    http://ip_address:http_service

    where:

    ip_address

    Is the IP address of the machine on which the server is running.

    http_service

    Is the value for HTTP Service entered during the server configuration procedure.

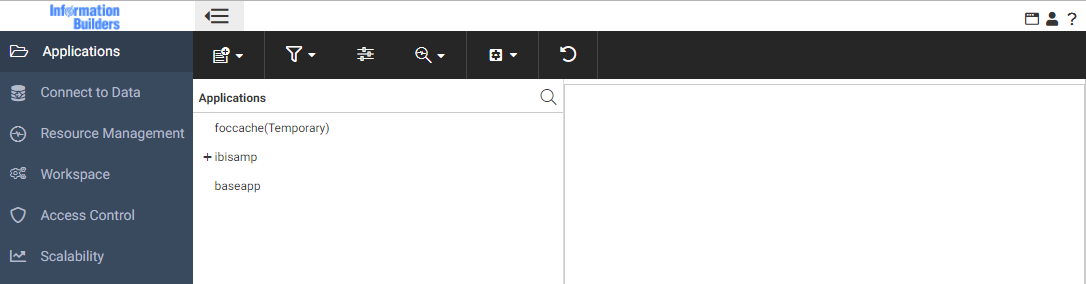

    The Web Console home page opens, as shown in the following image. The sidebar provides access to the different features of the Web Console.

    By default, icon text does not show on the menu bar or side bar.

    The names of the resources on the sidebar can be displayed by clicking the sidebar menu above the menu bar, as shown in the following image.

    The icon text can be displayed on the menu bar by clicking the Ribbon Options icon on the top right of the Web Console menu bar.

    The Web Console browser cache files for each server build will be stored separately. This means that multiple Web Console sessions using the same browser will not impact each other. Therefore, you will not have to clear the browser cache to switch between multiple servers using the same machine and browser.

    To implement separate cache files, each Web Console URL will automatically be invoked using a unique identifier. For example, if you enter the following URL:

    http://mypcname:8021/wc/wcstart.html

    The URL will automatically be issued with a unique identifier. For example:

    http://mypcname:8021/A4643588A8A7C435/wc/wcstart.html

    All other URLs generated by web connections to the server will use the same identification string.

  3. Select an option from the sidebar to access the corresponding console page and ribbon. For tasks that display information or require no additional navigation, the console displays corresponding information in the right pane. For tasks that require additional task-centered navigation, the console opens a new ribbon or window. Use the navigation pane of the new window to access the corresponding information.

    On Web Console resources trees:

    • Right-click behavior or clicking the down arrow next to an item opens pop-up menus, by default.
    • Double-click behavior executes the first option on a pop-up menu.

The console offers online help with two kinds of links to appropriate sections of this documentation:

  • Click ? on the menu bar and choose Contents and Search to display the full Web Console help system.
  • Click the ? icon, when available, to display contextual help specific to the item.

Web Console Ribbon

Web Console functionality is available through a ribbon at the top of the page. The ribbon is the default, and it can be toggled on and off using the Minimize the Ribbon option on the menu at the top right of the page. By default, the icon text does not display, but you can turn it on using the ribbon menu at the top right of the page.

The ribbon available from the Applications page is shown in the following image.

The interface includes the following menus at the top right of the page, as shown in the following image:

On the right area of the Web Console menu bar, a menu under the user ID of the connected user is displayed, if the server is running with security on. If it is not running with security on, a User menu appears. In addition, there is a ribbon menu to configure the view of the ribbon and a help menu to open the help content.

The ribbon provides the same options that are available from the right-click menus of the top nodes in the navigation pane. If the ribbon is hidden, right-clicking the Application Directories/Files node on the navigation pane provides the same options.

Web Console Hover Menu

Pages and panes in the Web Console can be rearranged, resized, or closed using the Hover menu. The Hover menu appears when you point your cursor to the top right corner of a pane, shown in the following image:



This menu contains the following options, some of which depend on the page that is open:

  • Drag and drop. Allows you to move the page within the Web Console interface. A shaded area indicates where the page will be placed.

    You can also access this option by pointing to the top of the right pane. The cursor becomes a four-headed arrow, indicating that you can move the page.

  • Menu. The menu contains options to control the layout of the pane of the Web Console. The same menu appears when you click the active tab or right-click a tab. The following options are available:
    • Maximize. The selected tab fills the Web Console interface except for the ribbon and sidebar.
    • Move tab left. Moves the selected tab to the left.
    • Move tab right. Moves the selected tab to the right.
    • Close. Closes the selected tab.
    • Close other tabs. Closes all tabs except for the selected tab.
    • Close tabs to the right. Closes all tabs to the right of the selected tab.
    • Close all. Closes all tabs.
    • Hide Frame. Removes the frame from the window.
    • Reopen Frame. Reopens a hidden frame.
    • View frame as. Opens a submenu for configuring how to display the frame.
      • View as Tabs. Shows pages open in the Web Console as separate tabs. This option is enabled by default.
      • View as Multiple Panes. Opens a submenu to arrange the pages as multiple panes, organized horizontally, vertically, or in an automatic layout.
    • Keep recent. Opens a submenu for configuring how many tabs or panes to keep.
      • View most recent only. Shows only the most recently opened tab.
      • View maximum set. Shows up to the maximum number of tabs, as set in the Layout Options. Once this value is exceeded, the oldest tab is closed each time a new tab opens.
      • View all. Shows all tabs. If there are too many tabs to fit onto the screen, you can navigate using the left and right arrow buttons that appear.
    • Show Layout Tree. Shows the properties of the container and frames.
    • Layout Options. Opens the Layout Options dialog box. The Layout Options dialog box provides the following options:
      • Layout style. Allows you to set the layout style to presentation mode, which hides the lines between panels in the Web Console, edit mode, which shows lines between panels, or use the default setting.
      • Side bar. Allows you to select whether to show or hide the side bar.
      • Auto-refresh status. Allows you to show or hide the auto-refresh option on the page, or use the default setting.
      • Refresh interval in seconds. Allows you to set a refresh interval or turn off auto-refresh.
      • Content header. Allows you to show the Hover menu as a Hover-tab or a Mini-bar above the right pane.
      • Header location. Allows you to place the Hover menu above the page content or at the top of the page.
      • Header in tabs. Allows you to show or hide the Hover menu when multiple tabs are open.
      • Max content per frame. Allows you to specify the maximum number of tabs to show when the View maximum set option is selected.
      • Hover tab. Allows you to select whether the hover menu should be above the content of on top of the content.
  • Show Maximized. The selected tab fills the Web Console interface except for the ribbon and sidebar.
  • Close. Closes the selected tab.
