GIS_SERV_AREA_XY: Calculating a Service Area Around a Given Coordinate

How to:

The GIS_SERV_AREA_XY function uses a GIS service to calculate the geometry area with access boundaries within the given time or distance from the provided coordinate. The output is returned in text format.

Syntax: How to Calculate a Geometry Area Around a Coordinate

GIS_SERV_AREA_XY(longitude, latitude, distance, travel_mode[, wkid])

where:

longitude

Alphanumeric

Is the longitude of the starting point.

latitude

Alphanumeric

Is the latitude of the starting point.

distance

Integer

Is the travel limitation in either time or distance units.

travel_mode

Alphanumeric

Is a valid travel mode as defined in gis_serv_area.mas in the Catalog directory under the server installation directory. The accepted travel modes are;

  • 'Miles'. This is the default value.
  • 'TravelTime'.
  • 'TruckTravelTime'.
  • 'WalkTime'.
  • 'Kilometers'.
wkid

Alphanmeric

Is the spatial reference ID for the coordinate. WKID is an abbreviation for Well-Known ID, which identifies a projected or geographic coordinate system. The default value is '4326', which represents decimal degrees.

Example: Calculating a Service Area Around a Coordinate

The following request calculates the geometry area that is a five-minute walk around a station, using the longitude and latitude that specify the station location.

DEFINE FILE esri/esri-citibike
DISTANCE/I4=5;
WKID/A10='4326';
TRAVEL_MODE/A10='WalkTime';
STATION_SERVICE_AREA/TX80 (GEOGRAPHIC_ROLE=GEOMETRY_AREA)=
   GIS_SERV_AREA_XY(START_STATION_LONGITUDE, START_STATION_LATITUDE, DISTANCE, TRAVEL_MODE, WKID);
END
TABLE FILE esri/esri-citibike
 PRINT
    START_STATION_ID AS 'Station ID'
    START_STATION_NAME AS 'Station Name'
    STATION_SERVICE_AREA
       AS '5-Minute Walk Service Area Around Station Coordinate'
 WHERE START_STATION_ID EQ 479 OR 512;
ON TABLE SET PAGE NOLEAD
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF, SIZE=12,$
ENDSTYLE
END

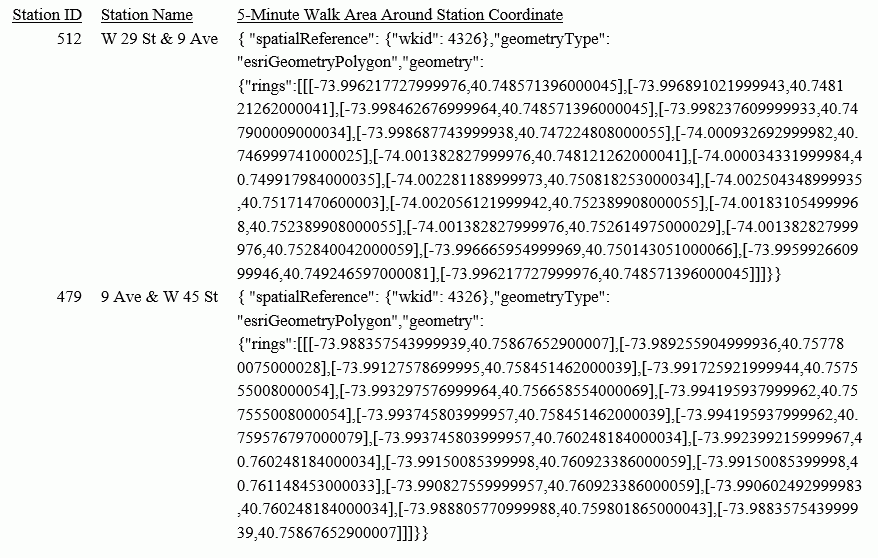

The output is shown in the following image.
