How to: |
Given two geometry points or lines, GIS_LINE builds a JSON line. The output is returned in text format.
GIS_LINE(geometry1, geometry2)
where:
Alphanumeric or text
Is the first point or line for defining the beginning of the new line.
Alphanumeric or text
Is the second point or line for the concatenation of the new line.
The following request prints start stations and end stations and builds a JSON line between them.
DEFINE FILE ESRI/ESRI-CITIBIKE STARTPOINT/A200 = GIS_POINT('4326', START_STATION_LONGITUDE, START_STATION_LATITUDE); ENDPOINT/A200 = GIS_POINT('4326', END_STATION_LONGITUDE, END_STATION_LATITUDE); CONNECTION_LINE/TX80 (GEOGRAPHIC_ROLE=GEOMETRY_LINE) = GIS_LINE(STARTPOINT, ENDPOINT); END TABLE FILE ESRI/ESRI-CITIBIKE PRINT END_STATION_NAME AS End CONNECTION_LINE AS 'Connecting Line' BY START_STATION_NAME AS Start WHERE START_STATION_NAME LE 'D' ON TABLE SET PAGE NOLEAD ON TABLE SET STYLE * TYPE=REPORT, GRID=OFF,$ ENDSTYLE END

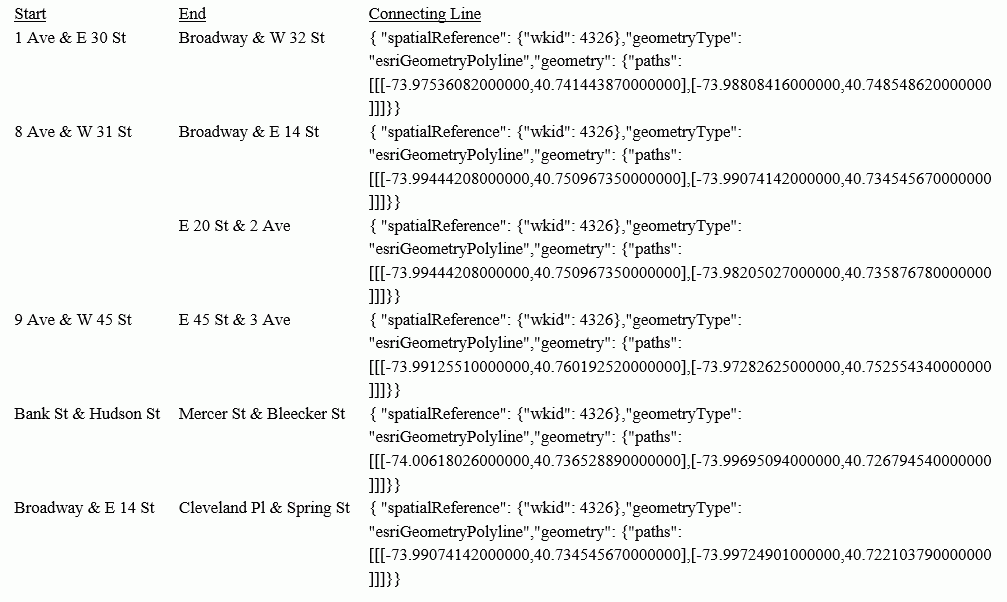

The output is shown in the following image.
