General Reports
|
Topics: |
These reports provide overviews of the data sources and procedures being monitored, as well as those procedures in the server application path that have never been executed. General Reports appear only on the Web Console.
To access any of the reports in the Web Console, click Resource Management on the sidebar and expand the Reports folder. Right-click the desired report, and click Run from the context menu. After specifying report filters, click View Report.
Monitored Sessions
The Monitored Sessions report provides an overview of the procedures and commands that are being monitored, including the number of records processed, and the rows returned.
The following image shows the Monitored Sessions report.
This report has one hyperlink that allows you to drill down to other reports, as described in the following table.
|
Click a hyperlink in the: |
Report Generated |
Description |
|---|---|---|
|
Date column |
Session Summary Report by Hour, then by Quarter, and then by detail. |

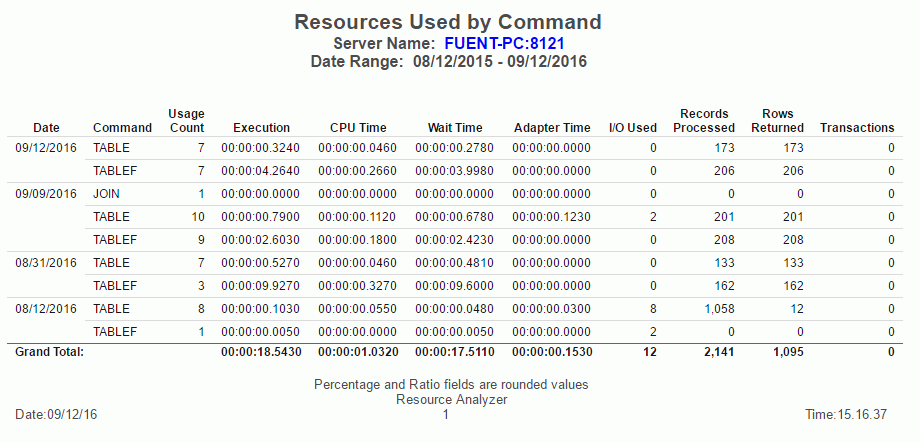

Monitored Commands
The Monitored Commands report provides an overview of the resources being used by each command, including the execution, CPU, and wait time.
The following image shows the Monitored Commands report.
Repository Statistics
The Repository Statistics report provides an overview of the total number of records collected during the time period specified.
The following image shows the Repository Statistics report.

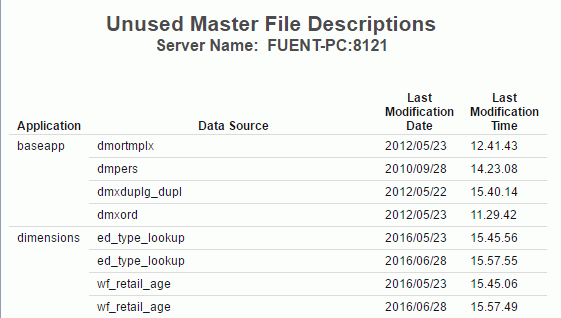

Data Sources Never Used
The Data Sources Never Used report provides an overview of unused data sources, including the application directory they are found in, and the last modification date and time.
The following image shows the Data Sources Never Used report.

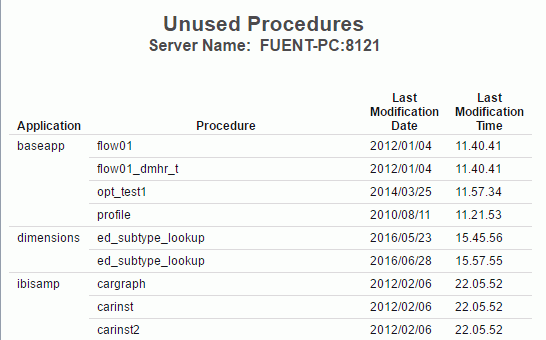

Procedures Never Used
The Procedures Never Used report lists those procedures in the application path of the server that have never been executed.
The following image shows the Procedures Never Used report.
