The KMEANS_CLUSTER function partitions observations into a specified number of clusters based on the nearest mean value. The function returns the cluster number assigned to the field value passed as a parameter.

Note: If there are not enough points to create the number of clusters requested, the value -10 is returned for any cluster that cannot be created.

KMEANS_CLUSTER(number,percent,iterations,tolerance, [prefix1.]field1[, [prefix1.]field2...])

where:

`number`-
Integer

Is number of clusters to extract.

`percent`-
Numeric

Is the percent of training set size (the percent of the total data to use in the calculations). The default value is AUTO, which uses the internal default percent.

`iterations`-
Integer

Is the maximum number of times to recalculate using the means previously generated. The default value is AUTO, which uses the internal default number of iterations.

`tolerance`-
Numeric

Is a weight value between zero (0) and 1.0. The value AUTO uses the internal default tolerance.

`prefix1`,`prefix2`-
Defines an optional aggregation operator to apply to the field before using it in the calculation. Valid operators are:

- SUM. which calculates the sum of the field values. SUM is the default value.
- CNT. which calculates a count of the field values.
- AVE. which calculates the average of the field values.
- MIN. which calculates the minimum of the field values.
- MAX. which calculates the maximum of the field values.
- FST. which retrieves the first value of the field.
- LST. which retrieves the last value of the field.

Note: The operators PCT., RPCT., TOT., MDN., MDE., RNK., and DST. are not supported.

`field1`-
Numeric

Is the set of data to be analyzed.

`field2`-
Numeric

Is an optional set of data to be analyzed.

The following request partitions the DOLLARS field values into four clusters and displays the result as a scatter chart in which the color represents the cluster. The request uses the default values for the percent, iterations, and tolerance parameters by passing them as the value 0 (zero).

SET PARTITION_ON = PENULTIMATE GRAPH FILE GGSALES PRINT UNITS DOLLARS COMPUTE KMEAN1/D20.2 TITLE 'K-MEANS'= KMEANS_CLUSTER(4, AUTO, AUTO, AUTO, DOLLARS); ON GRAPH SET LOOKGRAPH SCATTER ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET STYLE * INCLUDE=IBFS:/FILE/IBI_HTML_DIR/ibi_themes/Warm.sty,$ type = data, column = N2, bucket=y-axis,$ type=data, column= N1, bucket=x-axis,$ type=data, column=N3, bucket=color,$ GRID=OFF,$ *GRAPH_JS_FINAL colorScale: { colorMode: 'discrete', colorBands: [{start: 1, stop: 1.99, color: 'red'}, {start: 2, stop: 2.99, color: 'green'}, {start: 3, stop: 3.99, color: 'yellow'}, {start: 3.99, stop: 4, color: 'blue'} ] } *END ENDSTYLE END

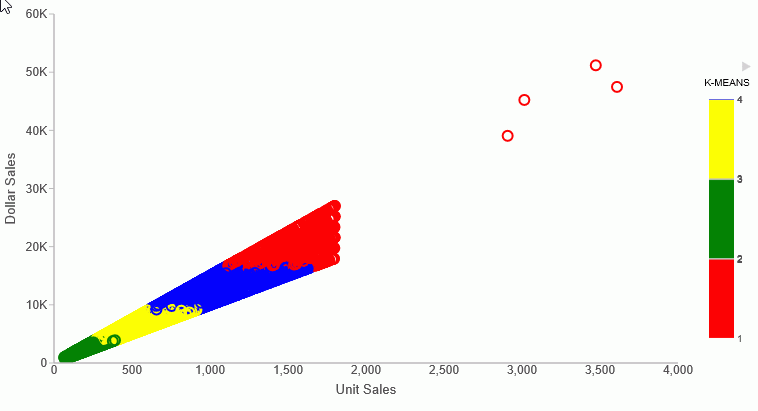

The output is shown in the following image.
