Formatting the Legend Title

How to:

The title property controls the visibility and format of the legend title.

Syntax: How to Format the Legend Title

"legend": {
   "title": {
      "visible": boolean,
      "text": "string",
      "font": "string",
      "color": "string"
   }
}

where:

"visible": boolean

Can be:

  • true, which makes the legend title visible.
  • false, which makes the legend title not visible. This is the default value.
  • "auto", which lets the chart engine determine legend visibility and placement.
"text": "string"

Is a string that defines the legend title text. The default value is "Legend Title".

"font": "string"

Is a string that defines the size, style, and typeface of the legend title. The default value is "10pt Sans-Serif".

"color": "string"

Is a string that defines the color of the legend title using a color name or numeric specification string. The default value is "black".

For information about defining colors, see Colors and Gradients.

Example: Formatting the Legend Title

The following request defines a legend title that is red with a bold-italic 12pt Verdana font:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
"legend": {"title": {
		"visible": true,
		"text": "The Legend Title",
		"font": "bold italic 12pt Verdana",
		"color": "red"
		}},
"series": [
	{"series": 0, "color": "lightgreen"},
	{"series": 1, "color": "coral"},
	{"series": 2, "color": "lightblue"},
	{"series": 3, "color": "burlywood"}
	]
*END
ENDSTYLE
END

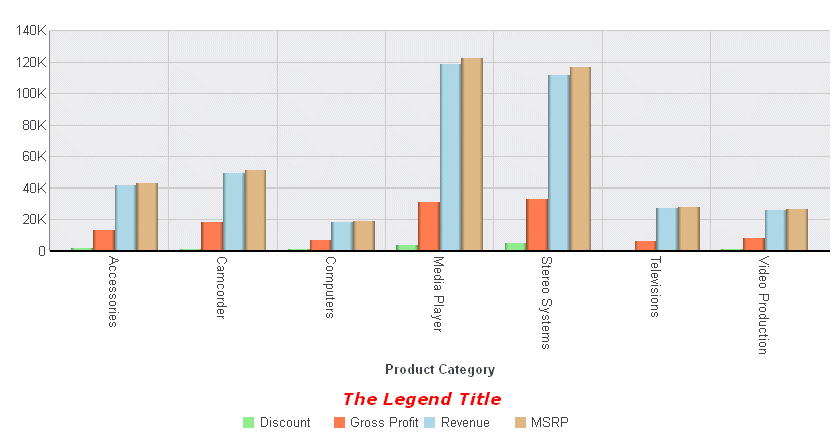

The output is:
