Generating a Scrolling Legend

How to:

If there are too many series to fit in the chart frame, you can enable a scrolling legend and format the properties of the scroll bar and scroll handle. The scrollbar will not appear unless it is necessary in order to display the entire legend.

Syntax: How to Generate a Scrolling Legend

"legend":
  {
  "scroll": {
     "enabled": boolean,
     "size": number,
     "color": "string",
     "handle": {
        "color": "string",
        "hoverColor": "string",
        "border": {
            "width": number,
            "color": "string",
            "dash": "string"
                    }
                  }
           }
  }

where:

"enabled": boolean

Controls whether the legend will be scrollable when necessary. Valid values are:

  • true, which enables legend scrolling.
  • false, which disables legend scrolling. This is the default value.
"size": number

Defines the width of the scroll bar in pixels. The default value is 15.

"color": "string"

Is a color or gradient definition string the defines the fill color of the scroll bar. The default color is "rgb(240, 240, 240)".

"handle":
Defines properties of the scroll bar handle.
"color": "string"

Is a color definition string that defines the color of the scroll bar handle. The default color is "grey".

"hoverColor": "string"

Is a color definition string that defines the color of the scroll bar handle when the mouse hovers over it or clicks on it. The default color is "rgb(88, 88, 88)".

"border":
Defines properties of the scroll bar handle border.
"width": number

Defines the width of the handle border in pixels. The default value is 0.

"color": "string"

Is a color definition string that defines the color of the handle border. The default value is 'transparent'.

"dash": "string"

Is a string that defines the dash style of the border. The default value is "" (a solid line). Use a string of numbers that defines the width of a dash in pixels followed by the width of the gap between dashes in pixels (for example, dash: "1 1" draws a dotted line).

Multiple dashes can be defined within the dash string (for example, "2 4 4 2"), in which case, the dash types will alternate along the border.

Example: Generating a Scrolling Legend

The following request generates a scrolling legend. The scroll bar fill color is a linear gradient that transitions from teal to cyan, the handle color is silver with a black border, and the fill color becomes orchid when the mouse hovers over or clicks it.

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US MSRP_US REVENUE_US DISCOUNT_US
COGS_LOCAL GROSS_PROFIT_LOCAL MSRP_LOCAL REVENUE_LOCAL DISCOUNT_LOCAL
BY PRODUCT_CATEGORY
ON GRAPH SET VAXIS 150
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH BAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/combine_templates/ENID_Default.sty,$
*GRAPH_JS
"xaxis": {"labels": {"rotation": 0}},
"legend": {"scroll": {
	"enabled": true,
	"size": 15,
	"color": "linear-gradient(0,0,100%,100%, 20% teal, 95% cyan)",
	"handle": {
		"color": "silver",
		"hoverColor": "orchid",
		"border": {
			"width": 3,
			"color": "black",
			"dash": ""
			}
		}}}
*END
TYPE=DATA, COLUMN=N2, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N3, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N4, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N5, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N6, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N7, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N8, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N9, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N10, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N11, BUCKET=y-axis, $
TYPE=DATA, COLUMN=N1, BUCKET=x-axis, $
ENDSTYLE
END

The following image shows the scroll bar before it is clicked:

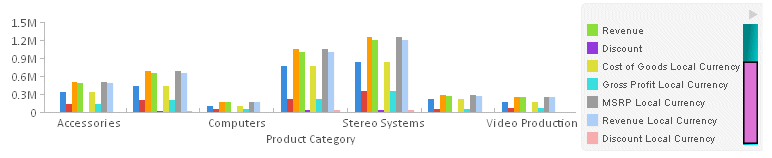

The following image shows the scroll bar handle dragged to the bottom of the legend area:
