Applying a Shadow to the Legend Area

How to:

The shadow property applies a shadow to the legend area.

Syntax: How to Apply a Shadow to the Legend Area

To enable or disable a default shadow on the legend area, use the following:

"legend": {
   "shadow": boolean}

where:

"shadow": boolean

Can be:

  • true, which enables a default shadow on the legend area.
  • false, which disables a default shadow on the legend area. This is the default value.

Example: Applying a Shadow to the Legend Area

The following request generates a default shadow around the legend area:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
"legend": {
	"shadow": true,
	"backgroundcolor": "tan",
	"lineStyle": {"color": "blue"}
	},
"series": [
	{"series": 0, "color": "lightgreen"},
	{"series": 1, "color": "coral"},
	{"series": 2, "color": "lightblue"},
	{"series": 3, "color": "burlywood"}
	]
*END
ENDSTYLE
END

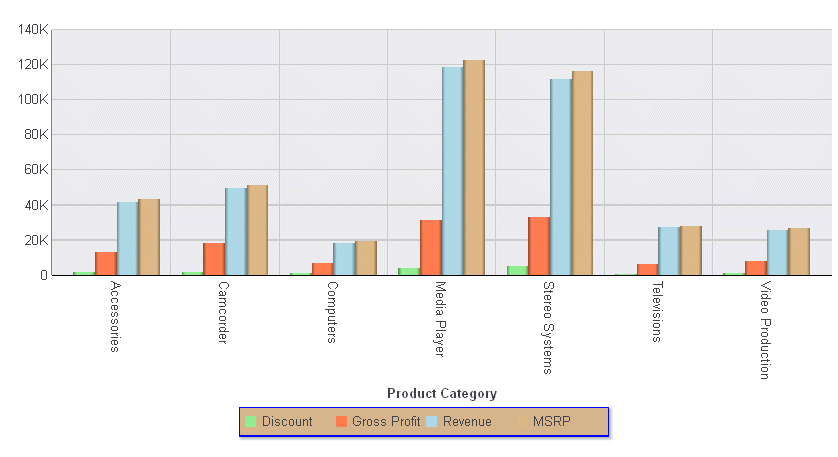

The output is:
