Controlling the Position of the Legend

How to:

The position property controls the location of the legend.

Syntax: How to Control the Legend Position

"legend": {"position": "string"}

where:

"position": "string"

Is a string that defines the location of the legend. Valid values are:

  • "bottom". This is the default value.
  • "free" (floating).

    Note: When legend position is set to "free", the legend may draw on top of other chart objects. Use the legend:xy property to define the location of the legend.

  • "left".
  • "right".
  • "top".
  • "auto". The chart engine positions the legend.

Example: Controlling the Legend Position

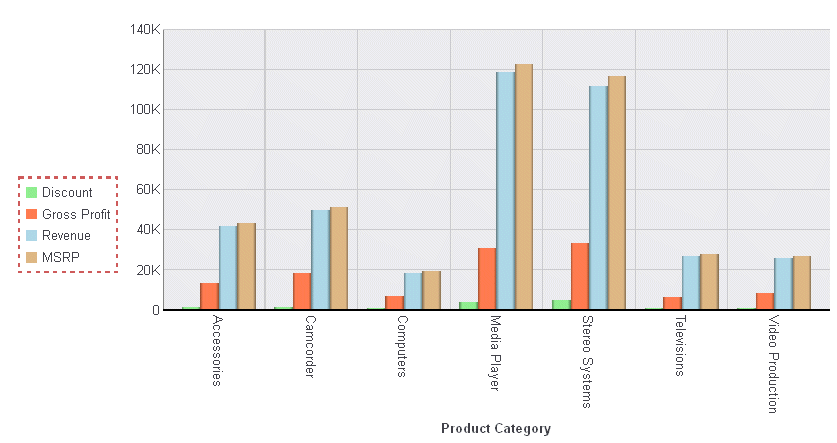

The following request moves the legend to the left of the chart and draws a border around it:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
"legend": {
	"position": "left",
	"lineStyle": {
		"width": 2,
		"color": "indianred",
		"dash": "4 4"}},
"series": [
	{"series": 0, "color": "lightgreen"},
	{"series": 1, "color": "coral"},
	{"series": 2, "color": "lightblue"},
	{"series": 3, "color": "burlywood"}
	]
*END
ENDSTYLE
END

The output is:

Changing the legend position to "free" generates the following chart on which the legend is on top of some of the risers:

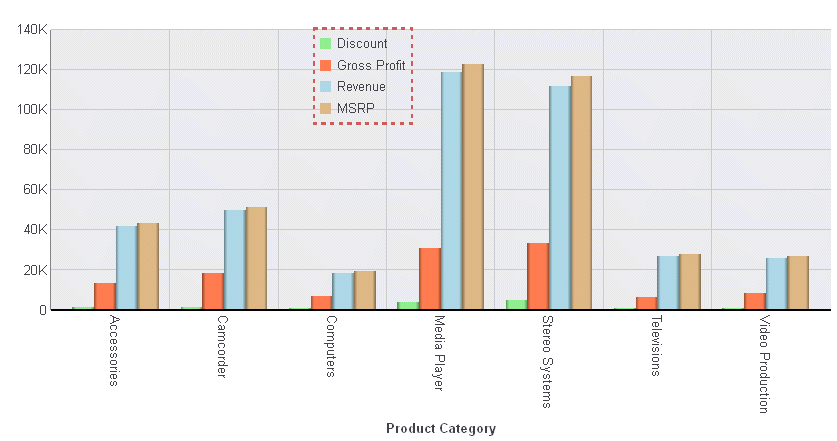

The position can be moved by specifying x and y locations for the legend:

"legend": {
	"position": "free",
	"xy": {"x": 280,"y": 20},
	"lineStyle": {
		"width": 2, "color": "indianred", "dash": "4 4"
		}}

The output is:
