Controlling the Size of Legend Markers

How to:

The markerSize property controls the size of legend markers.

Syntax: How to Control the Size of Legend Markers

"legend": {"markerSize": number}

where:

"markerSize": number

Defines the size of legend markers in pixels. The default value is 8.

Example: Controlling the Size of Legend Markers

The following request increases the size of the legend markers to 20:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
"legend": {"markerSize": 20},
"series": [
	{"series": 0, "color": "lightgreen"},
	{"series": 1, "color": "coral"},
	{"series": 2, "color": "lightblue"},
	{"series": 3, "color": "burlywood"}
	]
*END
ENDSTYLE
END

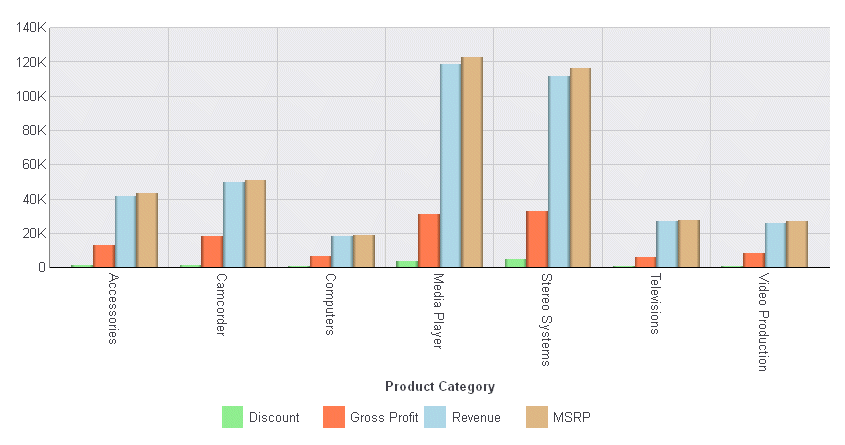

The output is:
