Applying a Color or Gradient to the Draw Area

How to:

The fill property defines a color or gradient to be applied to the draw area.

Syntax: How to Apply a Color or Gradient to the Draw Area

"fill": {
        "color": "color"}

where:

"color": "color"

Defines a fill color. Can be:

A string that defines a color by name or numeric specification string, or a gradient string. The default value is "white".

A JSON gradient definition object.

For information about specifying colors and gradients, see Colors and Gradients.

Example: Specifying a Fill Color or Gradient for the Draw Area

The following request generates a vertical line chart with a light blue fill color:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VLINE
ON GRAPH SET STYLE *
*GRAPH_JS
"fill": {"color": "LightBlue"},
"border": {"width": 4, "color": "purple"},
"series": [
	{"series": 0, "color": "navy"},
	{"series": 1, "color": "green"}
	]
*END
ENDSTYLE
END

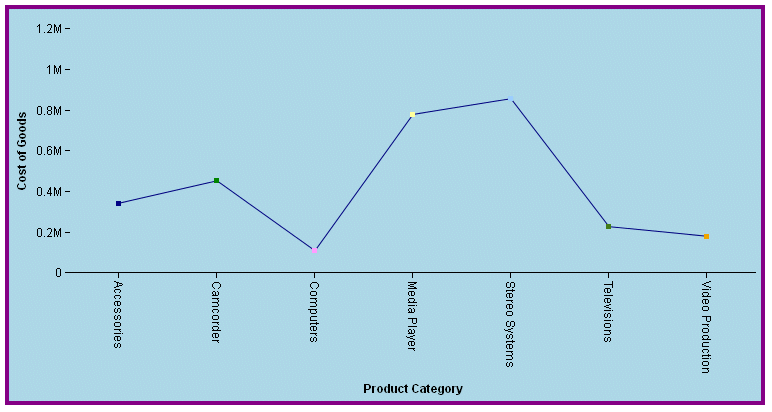

The output is:

The following request defines a JSON object that applies a linear gradient to the draw area:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US REVENUE_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VLINE
ON GRAPH SET STYLE *
*GRAPH_JS
"fill": {"color": {"type": "linear",
	"start": {"x": "0%", "y": "0%"},
	"end": {"x": "100%", "y": "100%"},
	"stops": [[0, "bisque"], [1, "ghostwhite"]]}
	},
"series": [
	{"series": 0, "color": "navy"},
	{"series": 1, "color": "green"}
	]
*END
ENDSTYLE
END

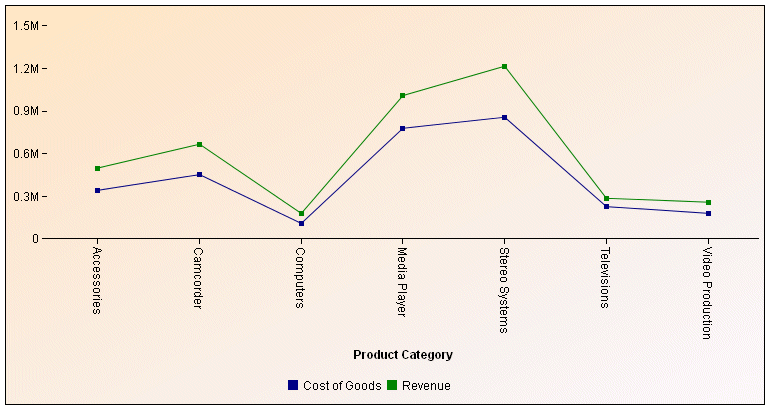

The gradient in the draw area transitions from bisque to ghost white:
