Charting > Axis Properties > Defining Color Bands

Defining Color Bands

How to:

The colorBand properties create blocks of color that span the overall chart area.

Syntax: How to Define Color Bands

"axisname":
{
  "colorBands": [
  {
    "start": startval,
    "stop": stopval,
    "color": "color"  }
  ]
},

where:

"axisname"

Can be:

  • "xaxis"
  • "yaxis"
  • "y2axis"
  • "zaxis"
"start": startval

Is a number or string that defines where on the axis to start the color band.

For a numeric axis:

  • A number must be a value that is visible on the axis.
  • A string must represent a percentage of the length of the axis. The string must be enclosed in double quotation marks and includes a percent symbol (for example, "50%").

For an ordinal axis:

  • a number must be a value between 0 and 1 that represents a percentage of the length of the axis. (for example, .5 will start the color band in the center of the chart).
  • A string must be a group label that is visible on the axis, enclosed in double quotation marks.
"stop": stopval

Is a number or string that defines where on the axis to end the color band.

For a numeric axis:

  • A number must be a value that is visible on the axis.
  • A string must represent a percentage of the length of the axis. The string must be enclosed in double quotation marks and includes a percent symbol (for example, "50%").

For an ordinal axis:

  • a number must be a value between 0 and 1 that represents a percentage of the length of the axis. (for example, .5 will end the color band in the center of the chart).
  • A string must be a group label that is visible on the axis, enclosed in double quotation marks.
"color": "color"

Defines the color of the band. Can be:

  • A color defined by a color name or numeric specification string, or a gradient defined by a string.
  • A JSON gradient definition.

For information about defining colors and gradients, see Colors and Gradients.

Example: Defining Color Bands on a Line Chart

The following request defines color bands on the y-axis. Since the y-axis is numeric, the numbers in the color band definitions are values that appear on the y-axis:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
BY MODEL
WHERE PRODUCT_CATEGORY EQ 'Computers'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VLINE
ON GRAPH SET STYLE *
*GRAPH_JS
"blaProperties": {"lineConnection": "curved"},
"yaxis": {"colorBands": [
{"start": 0, "stop": 7500, "color": "yellow"},
{"start": 7500, "stop": 15000, "color": "lightgreen"},
{"start": 15000, "stop": 22000, "color": "pink"},
{"start": 22000, "stop": 29000, "color": "lightblue"},
{"start": 29000, "stop": 37000, "color": "antiquewhite"},
{"start": 37000, "stop": 45000, "color": "limegreen"}
	]}
*END
ENDSTYLE
END

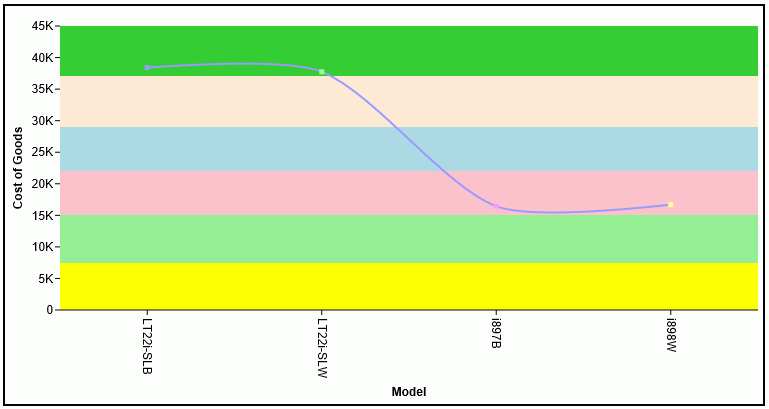

The output is:

The following version of the colorBands object expresses the band start and stop properties as percentages:

"yaxis": {
	"colorBands": [
		{"start": 0, "stop": "20%", "color": "yellow"},
		{"start": "20%", "stop": "40%", "color": "lightgreen"},
		{"start": "40%", "stop": "60%", "color": "pink"},
		{"start": "60%", "stop": "80%", "color": "lightblue"},
		{"start": "80%", "stop": "100%", "color": "antiquewhite"}
		]}

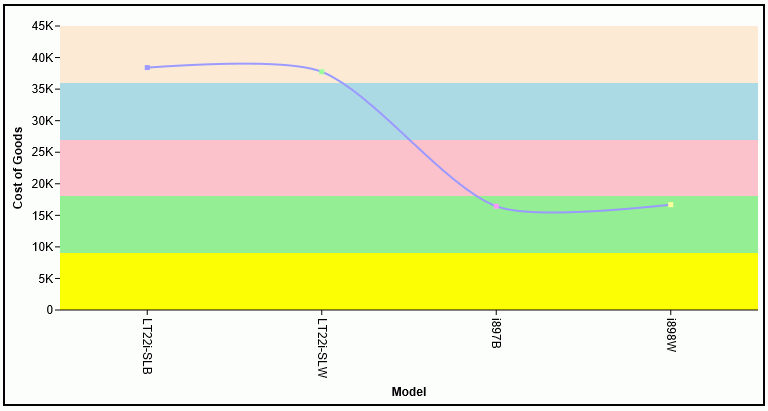

The output is:

Example: Defining Color Bands on a Gauge Chart

The following request generates a gauge chart and defines the color bands for the gauge axis:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
BY PRODUCT_CATEGORY
WHERE PRODUCT_CATEGORY EQ 'Computers'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH GAUGE1
ON GRAPH SET STYLE *
*GRAPH_JS
"yaxis": {
	"min": 0,
	"max": 50,
	"colorBands": [
		{"start": 1, "stop": 10, "color": "red"},
		{"start": 10, "stop": 20, "color": "orange"},
		{"start": 20, "stop": 30, "color": "yellow"},
		{"start": 30, "stop": 40, "color": "lightgreen"},
		{"start": 40, "stop": 50, "color": "green"}
		]}
*END
ENDSTYLE
END

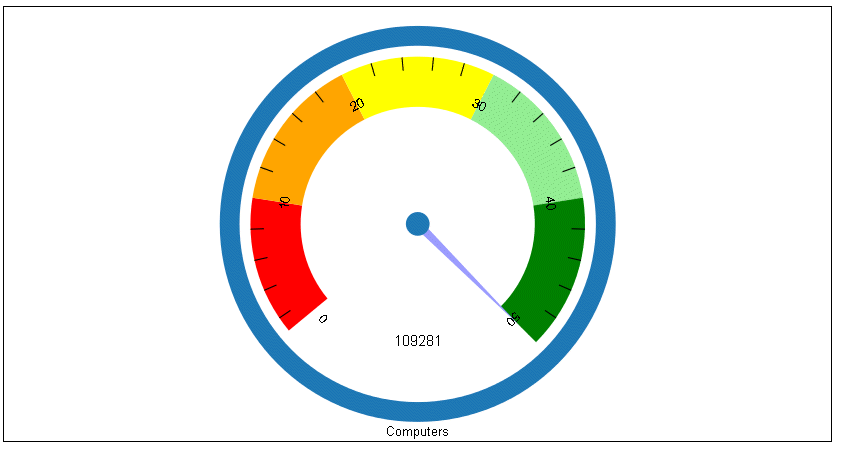

The output is:
