Converting Treemap Chart Requests to Chart Attribute Syntax

Reference:

Treemap charts show hierarchical data as a set of nested colored rectangles.

Reference: LOOKGRAPH Conversions for Treemap Charts

The following table lists the traditional LOOKGRAPH value and the new LOOKGRAPH value.

LOOKGRAPH Parameter

Traditional

Convert to

TREEMAP

TREEMAP

Reference: Attribute Category Assignments for Treemap Charts

The following table lists the attribute category conversions for treemap charts. The GRLEGEND and GRXAXIS parameters can be used interchangeably.

Type of Column or Parameter

Attribute Category

first measure field

size

second measure field, if any

color

GRLEGEND sort field

detail

GRXAXIS sort field

detail

GRMULTIGRAPH sort field

page

Example: Converting a Treemap Chart Request to Chart Attribute Syntax

The following example generates multiple treemap charts using traditional syntax (LOOKGRAPH value is TREEMAP). The high-level sort field (BRANDTYPE) is the GRMULTIGRAPH sort field. Separate treemap charts are generated for each value of BRANDTYPE. The PRODUCT_CATEGORY and PRODUCT_SUBCATEG sort fields generate the nested rectangles. The first measure (COGS_US) is used for the size of the rectangles, and the second measure (REVENUE_US) is used for the color of the rectangles:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
REVENUE_US
BY BRANDTYPE
BY PRODUCT_CATEGORY
BY PRODUCT_SUBCATEG
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET GRMERGE ADVANCED
ON GRAPH SET GRMULTIGRAPH 1
ON GRAPH SET GRLEGEND 1
ON GRAPH SET GRXAXIS 1
ON GRAPH SET LOOKGRAPH TREEMAP
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/combine_templates/ENWarm.sty,$
ENDSTYLE
END

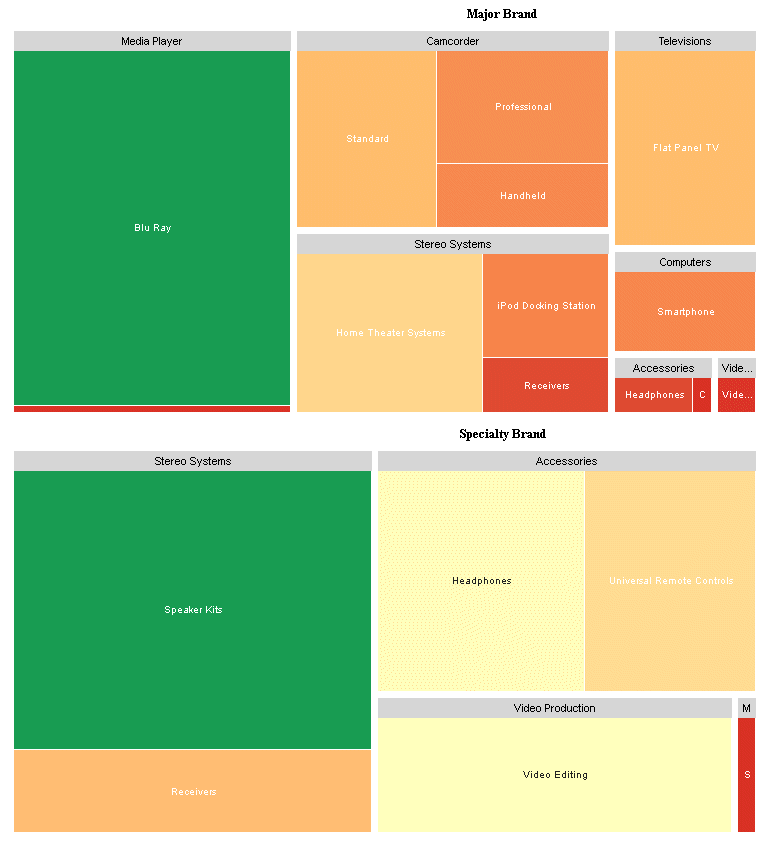

The output is shown in the following image:

The following is the same request converted to chart attribute syntax. The LOOKGRAPH value is TREEMAP. The measures (COGS_US and REVENUE_US) are assigned to the size and color attribute categories, the high-level sort field (BRANDTYPE) is assigned to the page attribute category, and the low-level sort fields (PRODUCT_CATEGORY and PRODUCT_SUBCATEG) are assigned to the detail attribute category.

GRAPH FILE WF_RETAIL_LITE
HEADING CENTER
"<BRANDTYPE"
SUM COGS_US
REVENUE_US
BY BRANDTYPE
BY PRODUCT_CATEGORY
BY PRODUCT_SUBCATEG
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH TREEMAP
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/combine_templates/ENWarm.sty,$
TYPE=DATA, COLUMN=BRANDTYPE, BUCKET=PAGE,$
TYPE=DATA, COLUMN=COGS_US, BUCKET=size,$
TYPE=DATA, COLUMN=REVENUE_US, BUCKET = color,$
TYPE=DATA, COLUMN=PRODUCT_CATEGORY, BUCKET=DETAIL,$
TYPE=DATA, COLUMN=PRODUCT_SUBCATEG, BUCKET=DETAIL,$
TYPE=HEADING, STYLE=BOLD,$
*GRAPH_JS
"legend": {"visible": false}
*END
ENDSTYLE
END

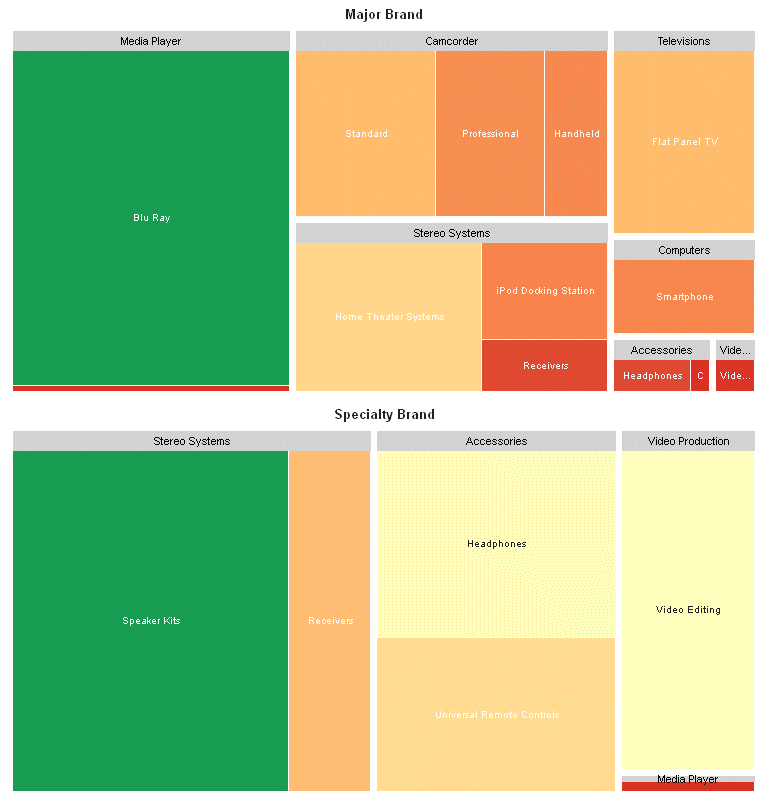

The output is shown in the following image:
