Arranging Controls in the New Parameters Dialog Box

You can choose the arrangement of controls in the New Parameters dialog box, without any additional steps, after the parameter controls are generated. This gives you the flexibility to design your HTML page, without the need for moving the controls after creation.

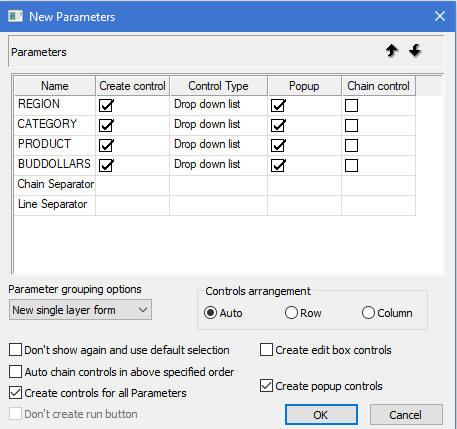

The Controls arrangement option, as shown in the following image, indicates the placement of controls.

The following are possible values for the Controls arrangement option:

• Auto. This value depends on the value in the Number of columns property in the Form settings dialog box. This dialog box is in the HTML Page section in the App Studio Options dialog box. Based on this value, the controls will fold to the next line. The valid values for Number of columns are 1 to 99. Auto is the default value.
• Row. Places the controls horizontally within the form.
• Column. Places the controls vertically within the form.
